Heiniger Handy Spare Parts

Shearing Equipment|Spares|Handheld Spares|Heiniger Handy Spare Parts

Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.
For any items that require a 'Special Order', please ring our friendly team who will be able to provide you with a price and also an estimated delivery time.

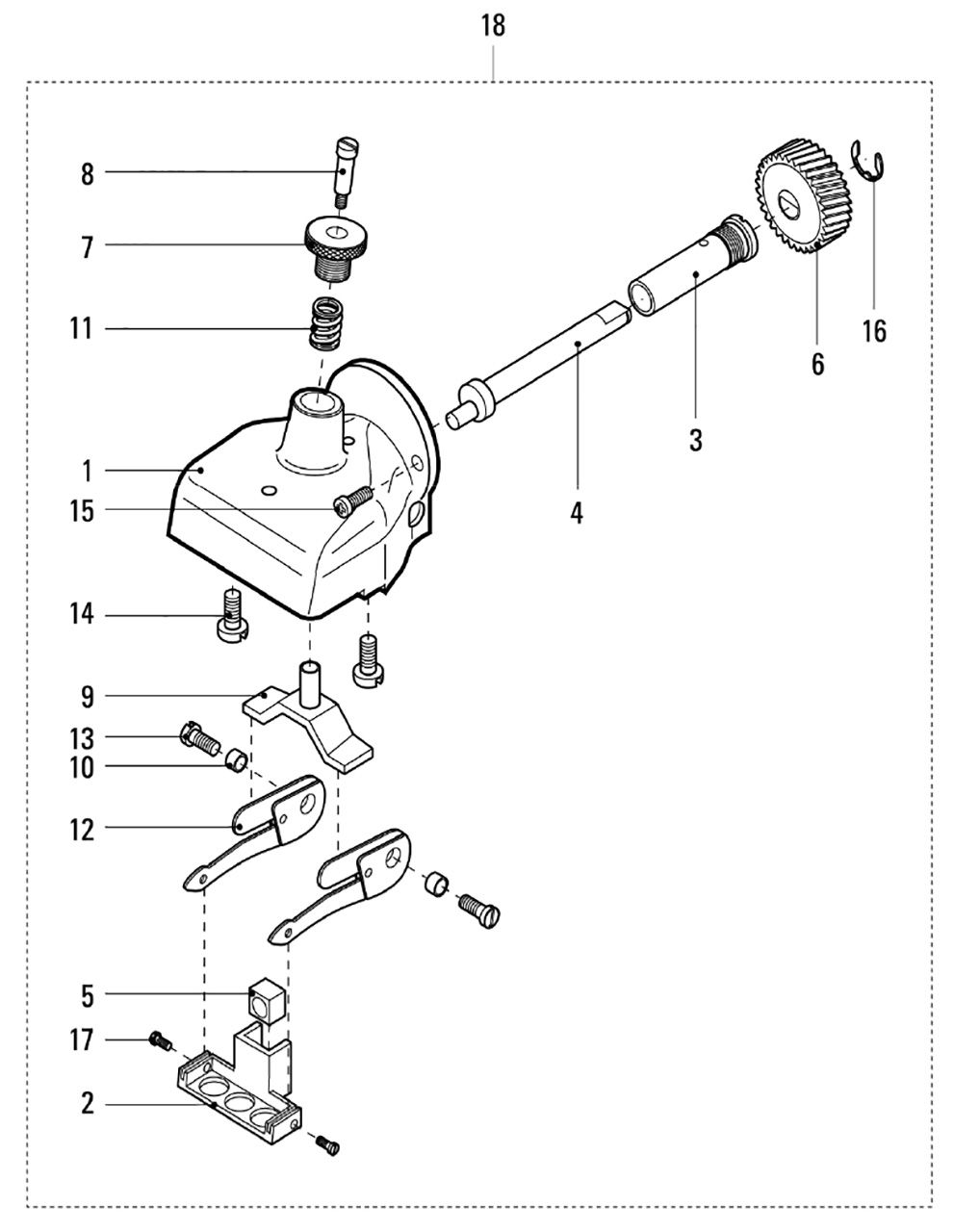

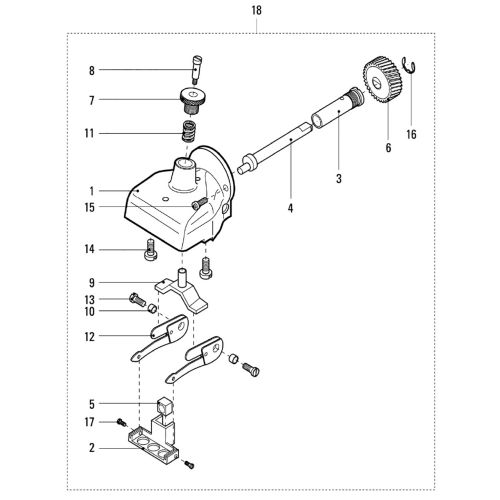

Heiniger Handy Head

1 - Head Casing

1 - Head Casing

Part number:706-501

£43.84

2 - Cutter Driving Carrier

2 - Cutter Driving Carrier

Part number:706-503

£26.36

3 - Crank Spindle Sleeve

3 - Crank Spindle Sleeve

Part number:706-505

£15.31

4 - Crankshaft

4 - Crankshaft

Part number:706-506

£14.94

5 - Crank Drive Block

5 - Crank Drive Block

Part number:706-507

£4.47

6 - Cog 31 tooth (brown)

6 - Cog 31 tooth (brown)

Part number:701-830

£19.84

7 - Tension Screw

7 - Tension Screw

Part number:706-509

£8.45

8 - Distance Screw

8 - Distance Screw

Part number:706-510

£3.22

9 - Pressure Plate

9 - Pressure Plate

Part number:706-511

£2.58

10 - Centering Ring/Bush

10 - Centering Ring/Bush

Part number:706-514

£1.31

11 - Pressure Spring

11 - Pressure Spring

Part number:706-517

£0.86

12 - Laminated Spring Riveted

12 - Laminated Spring Riveted

Part number:706-518

£7.37

13 - P.H Screw M5 x 14

13 - P.H Screw M5 x 14

Part number:706-520

£0.14

14 - P.H Screw M6 x 16

14 - P.H Screw M6 x 16

Part number:706-521

£0.78

15 - P.H Screw M4 x 10

15 - P.H Screw M4 x 10

Part number:706-523

£0.57

16 - Circlip Benzing 6

16 - Circlip Benzing 6

Part number:706-524

£0.16

17 - Special Screw M3 x 6

17 - Special Screw M3 x 6

Part number:706-525

£0.65

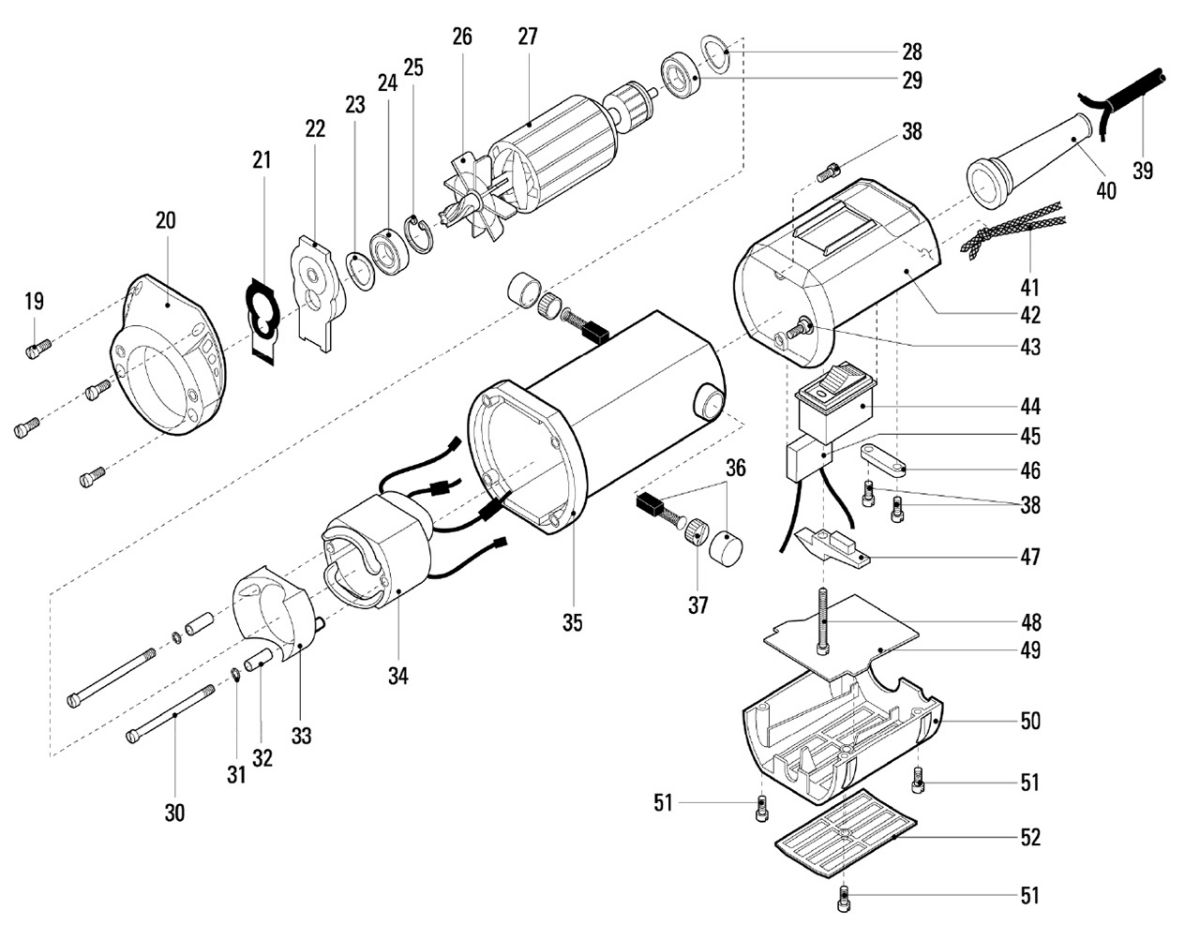

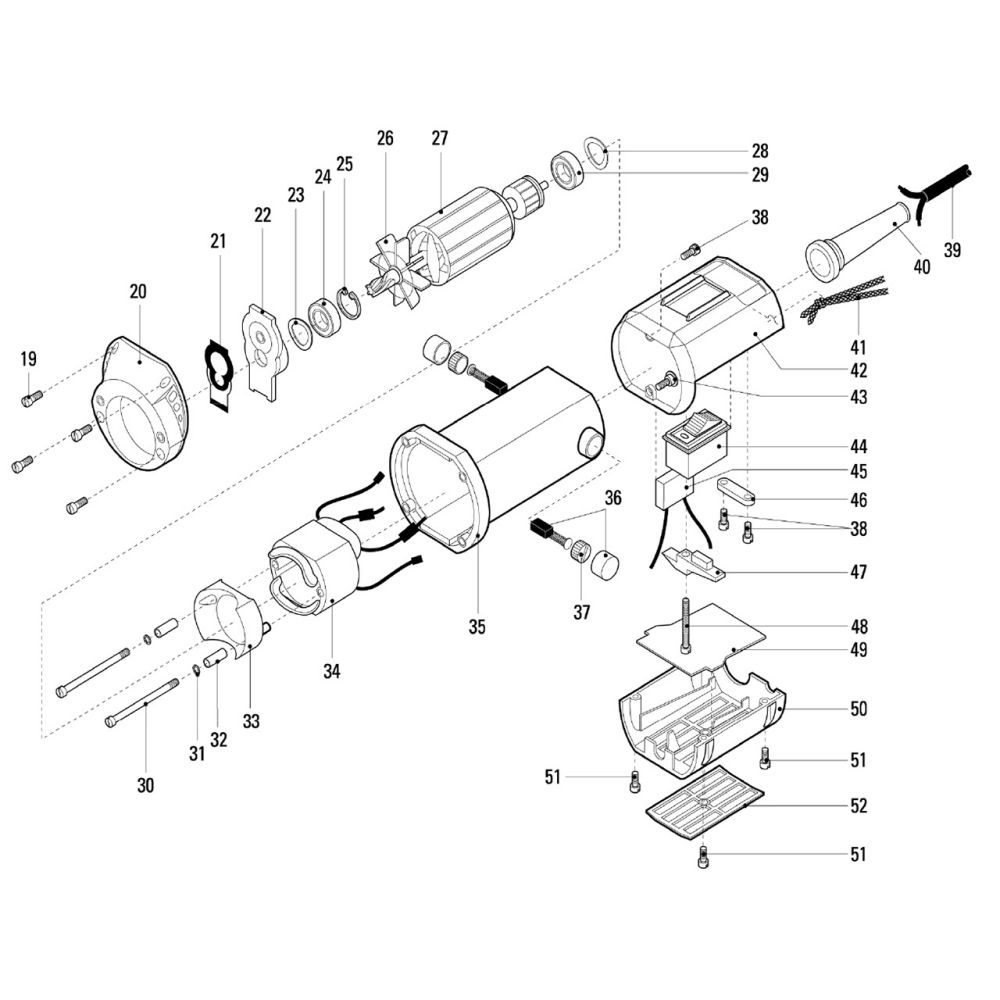

Heiniger Handy Body

19 - Socket Head Cap Screw M3.5 x 6

19 - Socket Head Cap Screw M3.5 x 6

Part number:701-824

£0.14

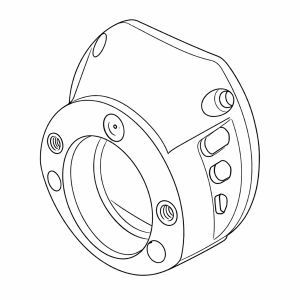

20 - Gear Box

20 - Gear Box

Part number:701-803

£13.17

21 - Seal

21 - Seal

Part number:701-612

£6.72

22 - Centering Flange

22 - Centering Flange

Part number:701-610

£9.25

23 - Spring Washer 608

23 - Spring Washer 608

Part number:701-638

£0.86

24 - Ball Bearing 608 ZZ

24 - Ball Bearing 608 ZZ

Part number:701-636

£8.40

25 - Retaining Ring for Bores Ø22

25 - Retaining Ring for Bores Ø22

Part number:701-639

POA

26 - Fan Wheel

26 - Fan Wheel

Part number:701-808

POA

27 - Rotor and Fan Wheel

27 - Rotor and Fan Wheel

Part number:701-809

£76.83

28 - Spring Washer 626

28 - Spring Washer 626

Part number:701-637

£0.78

29 - Ball Bearing 626 ZZ

29 - Ball Bearing 626 ZZ

Part number:701-635

£8.40

30 - Socket Head Cap Screw M3 x 45

30 - Socket Head Cap Screw M3 x 45

Part number:701-820

POA

31 - Washer M3

31 - Washer M3

Part number:701-616

£0.10

32 - Spacer Sleeve

32 - Spacer Sleeve

Part number:701-818

POA

33 - Airflow Guide

33 - Airflow Guide

Part number:701-817

POA

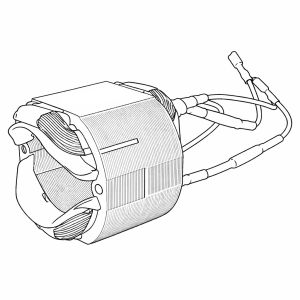

34 - Stator Complete

34 - Stator Complete

Part number:701-822

£80.05

35 - Motor Housing

35 - Motor Housing

Part number:701-800-21-A

POA

36 - Brush and Spring (Pair)

36 - Brush and Spring (Pair)

Part number:701-633

£9.45

37 - Brush Cap

37 - Brush Cap

Part number:701-634

£1.21

38 - Fillister Head Screw M3.5 x 8

38 - Fillister Head Screw M3.5 x 8

Part number:701-640

£0.34

39 - Cable with Plug GB

39 - Cable with Plug GB

£24.85

40 - Cable Sleeve

40 - Cable Sleeve

Part number:701-623

£3.90

41 - Cord Hanger

41 - Cord Hanger

Part number:701-800-23

POA

42 - Switch Housing Upper

42 - Switch Housing Upper

Part number:701-867

£15.71

43 - Retaining Screw

43 - Retaining Screw

Part number:701-621

£1.56

44 - Main Switch

44 - Main Switch

Part number:701-631

£12.80

45 - Capactior 0.15UF - 240V

45 - Capactior 0.15UF - 240V

Part number:701-669

£8.87

46 - Cable grip for Cord

46 - Cable grip for Cord

Part number:701-671

£1.31

47 - Clamp 12V

47 - Clamp 12V

Part number:701-619

POA

48 - Socket Head Cap Screw M3 x 25

48 - Socket Head Cap Screw M3 x 25

Part number:701-642

POA

49 - Dust Cover

49 - Dust Cover

Part number:701-627

£1.89

50 - Lower Switch Housing

50 - Lower Switch Housing

Part number:701-605

POA

51 - Fillister Head Screw M3 x 6

51 - Fillister Head Screw M3 x 6

Part number:701-641

£0.24

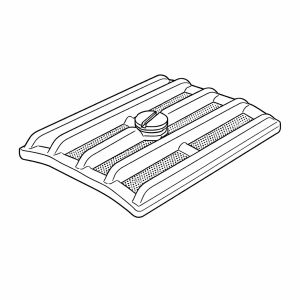

52 - Filter Complete

52 - Filter Complete

Part number:701-600-30A

£8.32
