Heiniger USV Heavy Duty Clipper SpareParts

Shearing Equipment|Spares|Handheld Spares|Heiniger USV Heavy Duty Clipper SpareParts

Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.
For any items that require a 'Special Order', please ring our friendly team who will be able to provide you with a price and also an estimated delivery time.

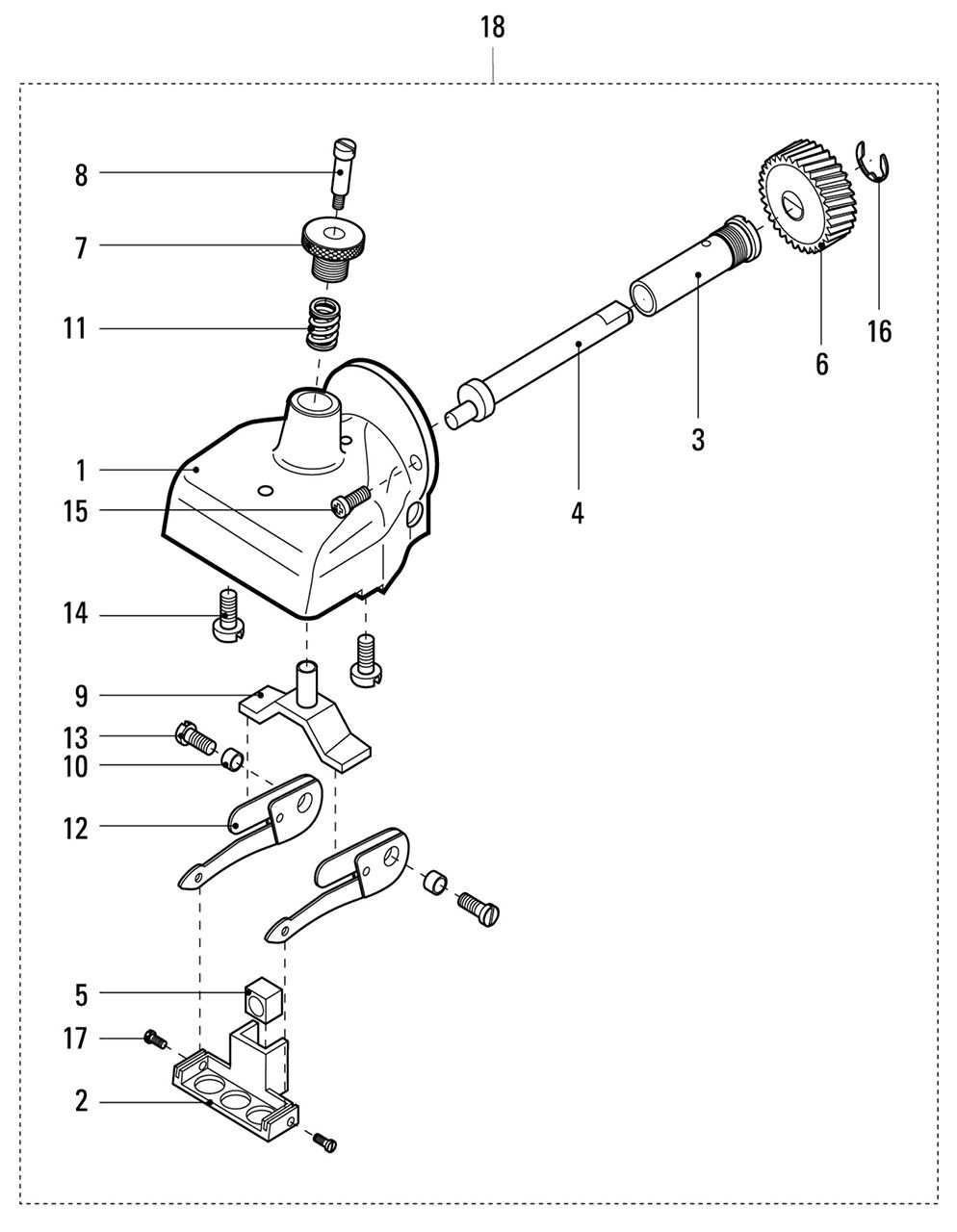

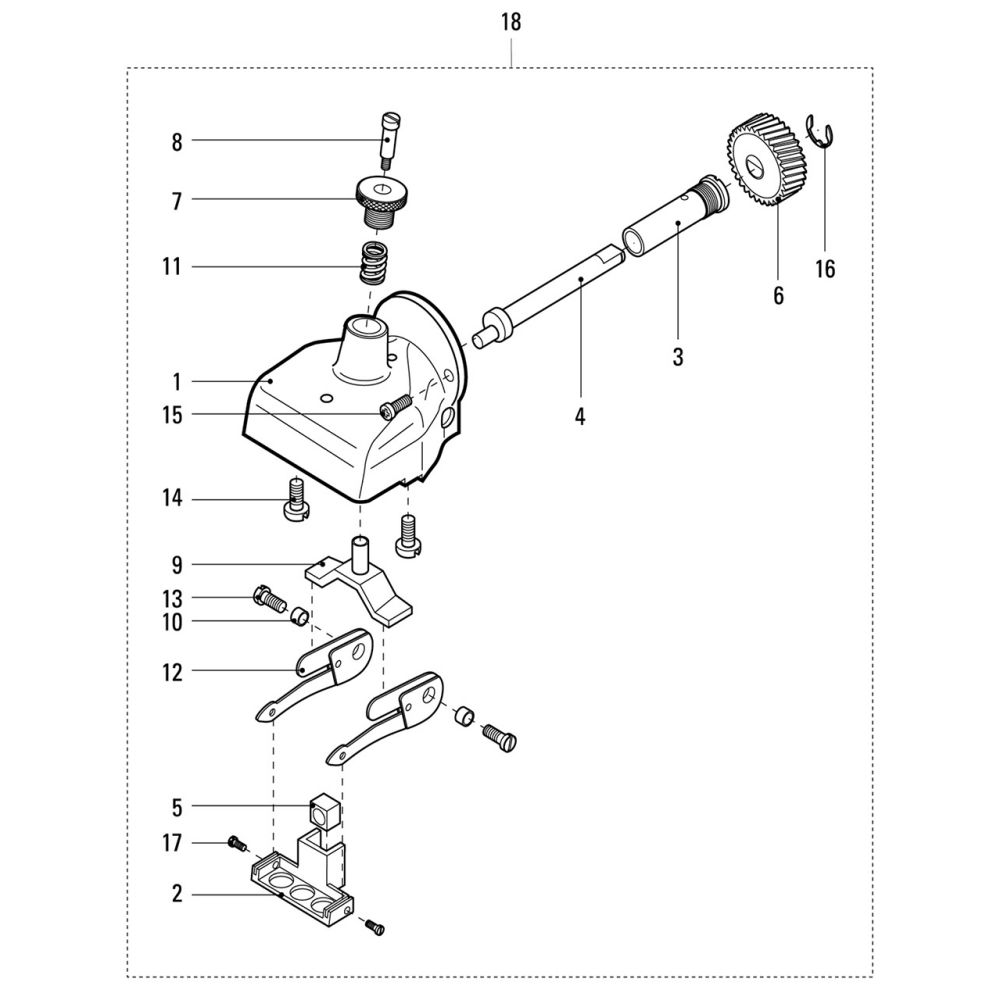

Heiniger USV Heavy Duty Clipper Head

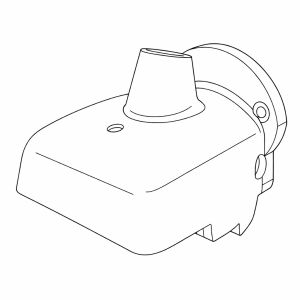

1 - Clipper Head Case

1 - Clipper Head Case

Part number:706-501

£43.84

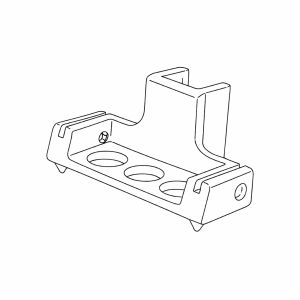

2 - Cutter Driving Carrier

2 - Cutter Driving Carrier

Part number:706-503

£26.36

3 - Crank Spindle Sleeve

3 - Crank Spindle Sleeve

Part number:706-505

£15.31

4 - Crankshaft

4 - Crankshaft

Part number:706-506

£14.94

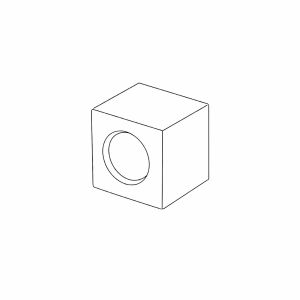

5 - Crank Drive Block

5 - Crank Drive Block

Part number:706-507

£4.47

6 - Cog Wheel - 30 Tooth (12V/HD)

6 - Cog Wheel - 30 Tooth (12V/HD)

Part number:717-711

£12.80

7 - Tension Screw

7 - Tension Screw

Part number:706-509

£8.45

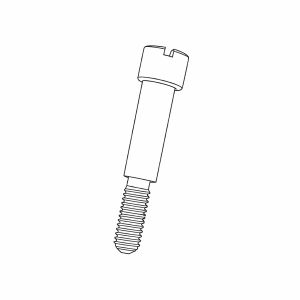

8 - Distance Screw

8 - Distance Screw

Part number:706-510

£3.22

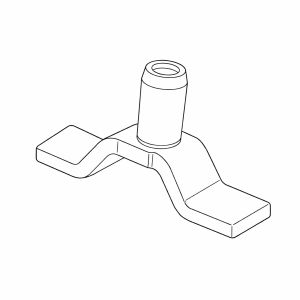

9 - Pressure Plate

9 - Pressure Plate

Part number:706-511

£2.58

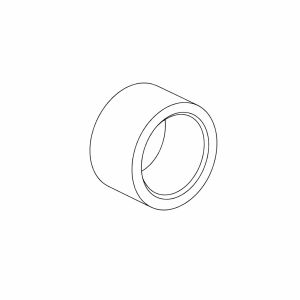

10 - Centering Bush

10 - Centering Bush

Part number:706-514

£1.31

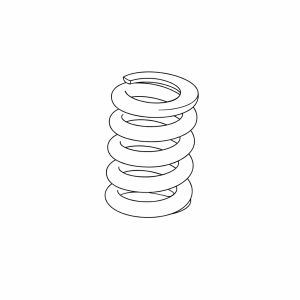

11 - Pressure Spring

11 - Pressure Spring

Part number:706-517

£0.86

12 - Laminated Spring Riveted

12 - Laminated Spring Riveted

Part number:706-518

£7.37

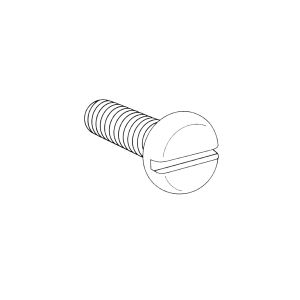

13 - P.H Screw M5 x 14

13 - P.H Screw M5 x 14

Part number:706-520

£0.14

14 - Comb Screw

14 - Comb Screw

Part number:706-521

£0.78

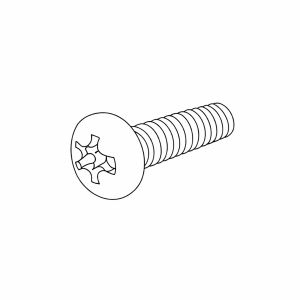

15 - P.H Screw M4 x 10

15 - P.H Screw M4 x 10

Part number:706-523

£0.57

16 - Circlip for Shaft 6

16 - Circlip for Shaft 6

Part number:706-524

£0.16

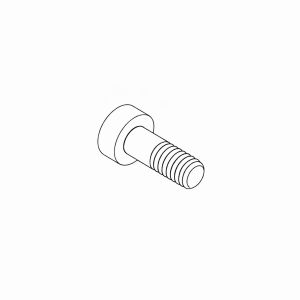

17 - Socket Head Cap Screw partially threaded M3 x 6

17 - Socket Head Cap Screw partially threaded M3 x 6

Part number:706-525

£0.65

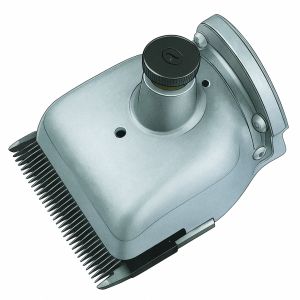

18 - Clipper Head 12V with Blades

18 - Clipper Head 12V with Blades

Part number:706-500.30

POA

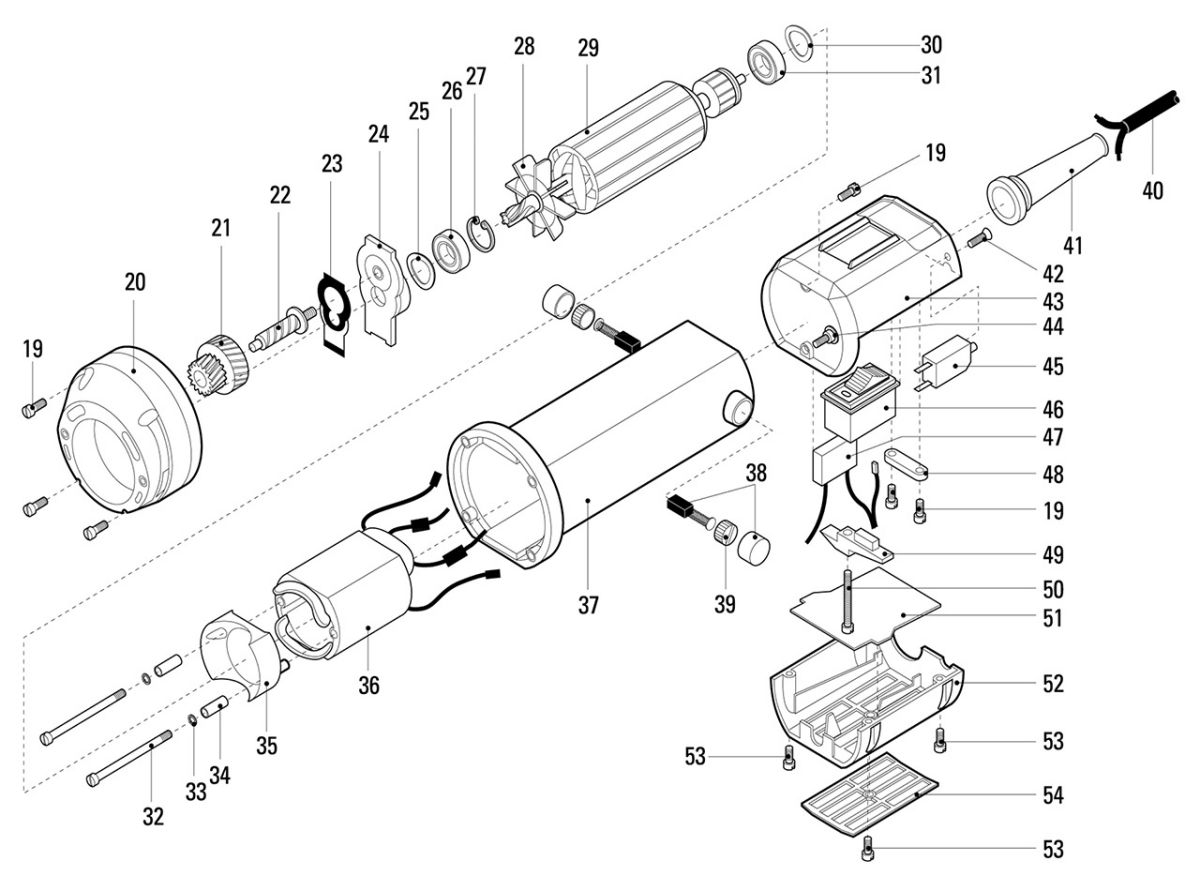

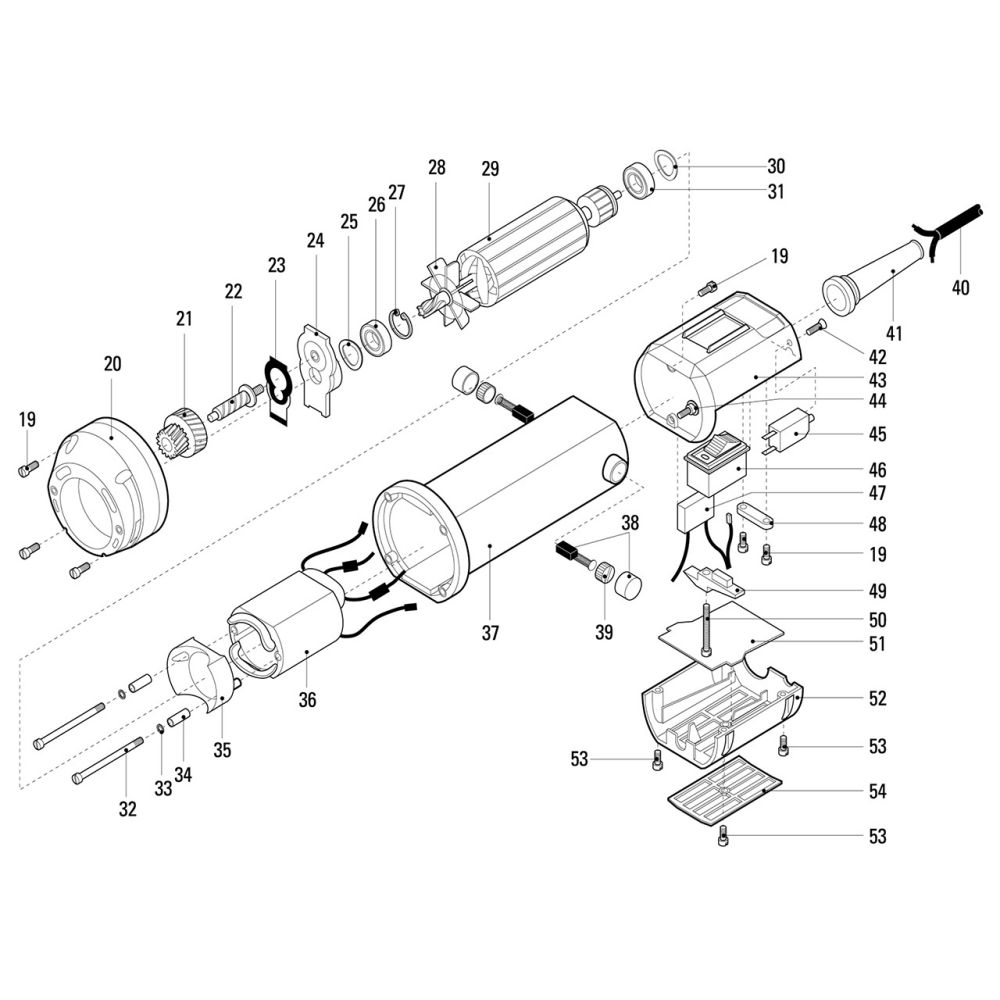

Heiniger USV Heavy Duty Clipper Body

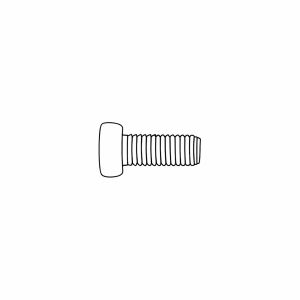

19 - Socket Head Cap Screw M3.5 x 8

19 - Socket Head Cap Screw M3.5 x 8

Part number:701-640

£0.34

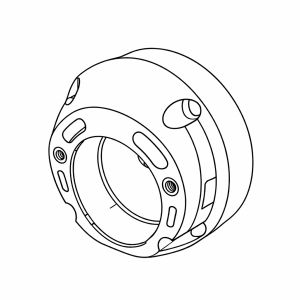

20 - Gear Box Housing

20 - Gear Box Housing

Part number:701-602

£12.20

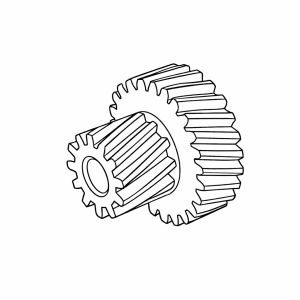

21 - Cog Wheel Z21/12

21 - Cog Wheel Z21/12

Part number:701-613

£32.13

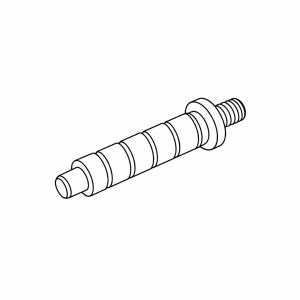

22 - Spindle

22 - Spindle

Part number:701-615

£6.67

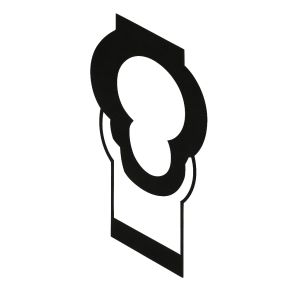

23 - Seal

23 - Seal

Part number:701-612

£6.72

24 - Centering Flange

24 - Centering Flange

Part number:701-610

£9.25

25 - Spring Washer 608

25 - Spring Washer 608

Part number:701-638

£0.86

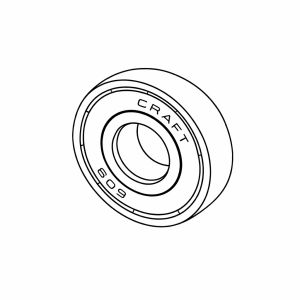

26 - Ball Bearing 608 2Z

26 - Ball Bearing 608 2Z

Part number:701-636

£8.40

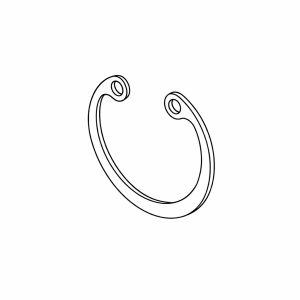

27 - Retaining Ring for Bores ⌀22

27 - Retaining Ring for Bores ⌀22

Part number:701-639

POA

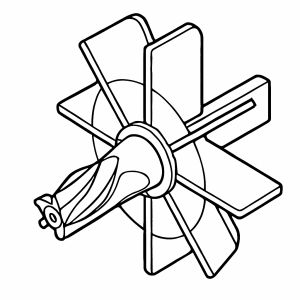

28 - Fan Wheel

28 - Fan Wheel

Part number:701-608

POA

28 & 29 - Rotor Complete

28 & 29 - Rotor Complete

Part number:701-609

£83.44

30 - Spring Washer 626

30 - Spring Washer 626

Part number:701-638

£0.78

31 - Ball Bearing 626 2Z

31 - Ball Bearing 626 2Z

Part number:701-635

£8.40

32 - Socket Head Cap Screw M3 x 7.25

32 - Socket Head Cap Screw M3 x 7.25

Part number:701-620

£1.34

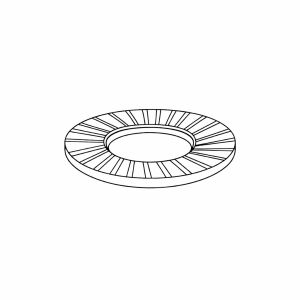

33 - Ribbed Washer M3

33 - Ribbed Washer M3

Part number:701-616

£0.10

34 - Spacer Sleeve

34 - Spacer Sleeve

Part number:701-614

£1.58

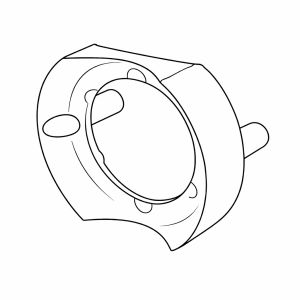

35 - Airflow Guide

35 - Airflow Guide

Part number:701-617

POA

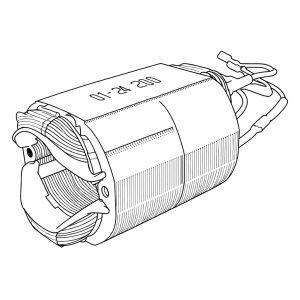

36 - Stator 240V

36 - Stator 240V

Part number:701-622

£48.20

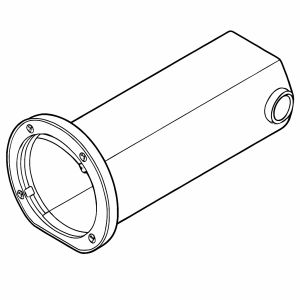

37 - Motor Housing

37 - Motor Housing

Part number:701-600-25A

£39.02

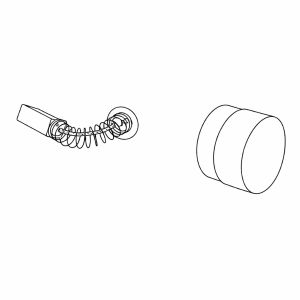

38 - Carbon Brushes (Pair) with Spring & Protection Cap

38 - Carbon Brushes (Pair) with Spring & Protection Cap

Part number:701-633

£9.45

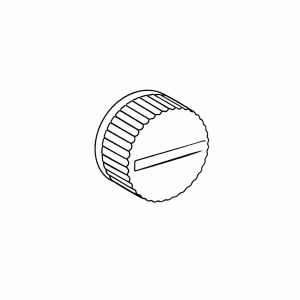

39 - Brush Cap

39 - Brush Cap

Part number:701-634

£1.21

40 - Cable with Plug GB

40 - Cable with Plug GB

Part number:701-878

£12.00

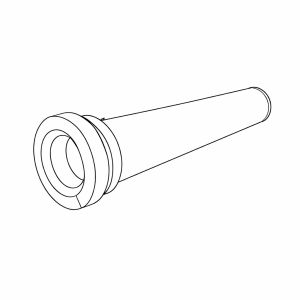

41A - Anti-Kink Sleeve for EURO/AUS Cord

41A - Anti-Kink Sleeve for EURO/AUS Cord

Part number:701-623

£3.90

41B - Anti-Kink Sleeve for USA/GB/12V Cord

41B - Anti-Kink Sleeve for USA/GB/12V Cord

Part number:712-111

£5.01

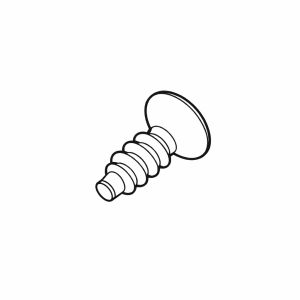

42 - PT Screw KA 25 x 6

42 - PT Screw KA 25 x 6

Part number:701-643

£0.48

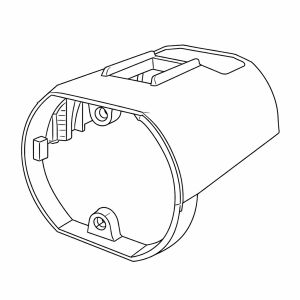

43 - Switch Housing Upper

43 - Switch Housing Upper

Part number:701-603

£18.79

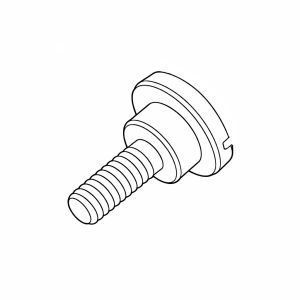

44 - Retaining Screw M3.5

44 - Retaining Screw M3.5

Part number:701-621

£1.56

45 - Overload Security Switch

45 - Overload Security Switch

Part number:701-630

£17.16

46 - Main Switch

46 - Main Switch

Part number:701-631

£12.80

47 - Capacitor 0.15UF 240V

47 - Capacitor 0.15UF 240V

Part number:701-669

£8.87

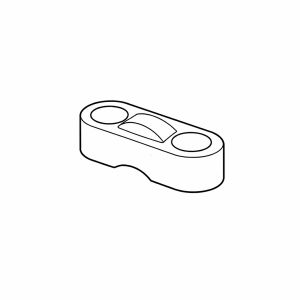

48 - Cable Grip for Cord

48 - Cable Grip for Cord

Part number:701-671

£1.31

49 - Clamp

49 - Clamp

Part number:701-619

POA

50 - Socket Head Cap Screw M3 x 25

50 - Socket Head Cap Screw M3 x 25

Part number:701-642

POA

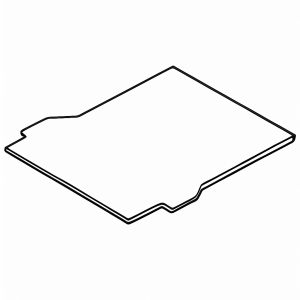

51 - Dust Cover

51 - Dust Cover

Part number:701-627

£1.89

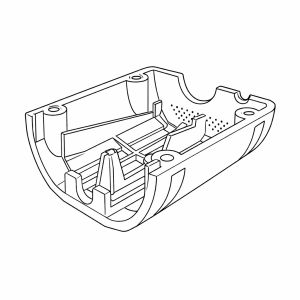

52 - Lower Switch Housing

52 - Lower Switch Housing

Part number:701-605

£11.04

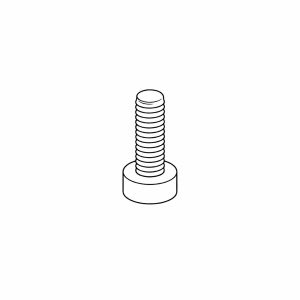

53 - Socket Head Cap Screw M3 x 6

53 - Socket Head Cap Screw M3 x 6

Part number:701-641

£0.24

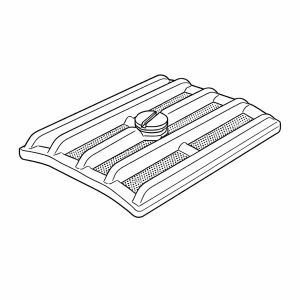

54 - Filter Complete

54 - Filter Complete

Part number:701-600-30A

£8.32
