Heiniger EVO Spares

Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

Please call our friendly team on 01200 427419 for any enquiries regarding items that require a Special Order.

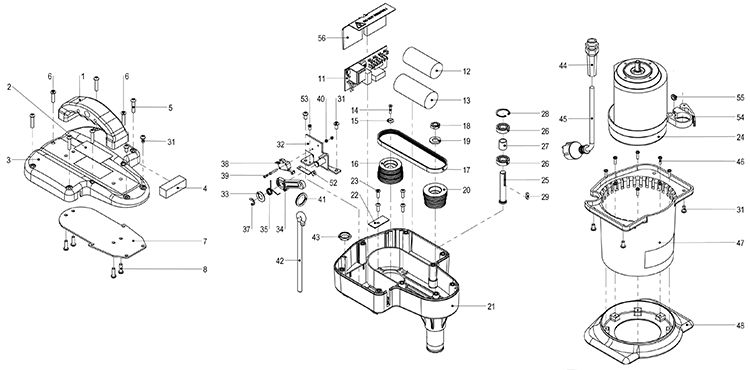

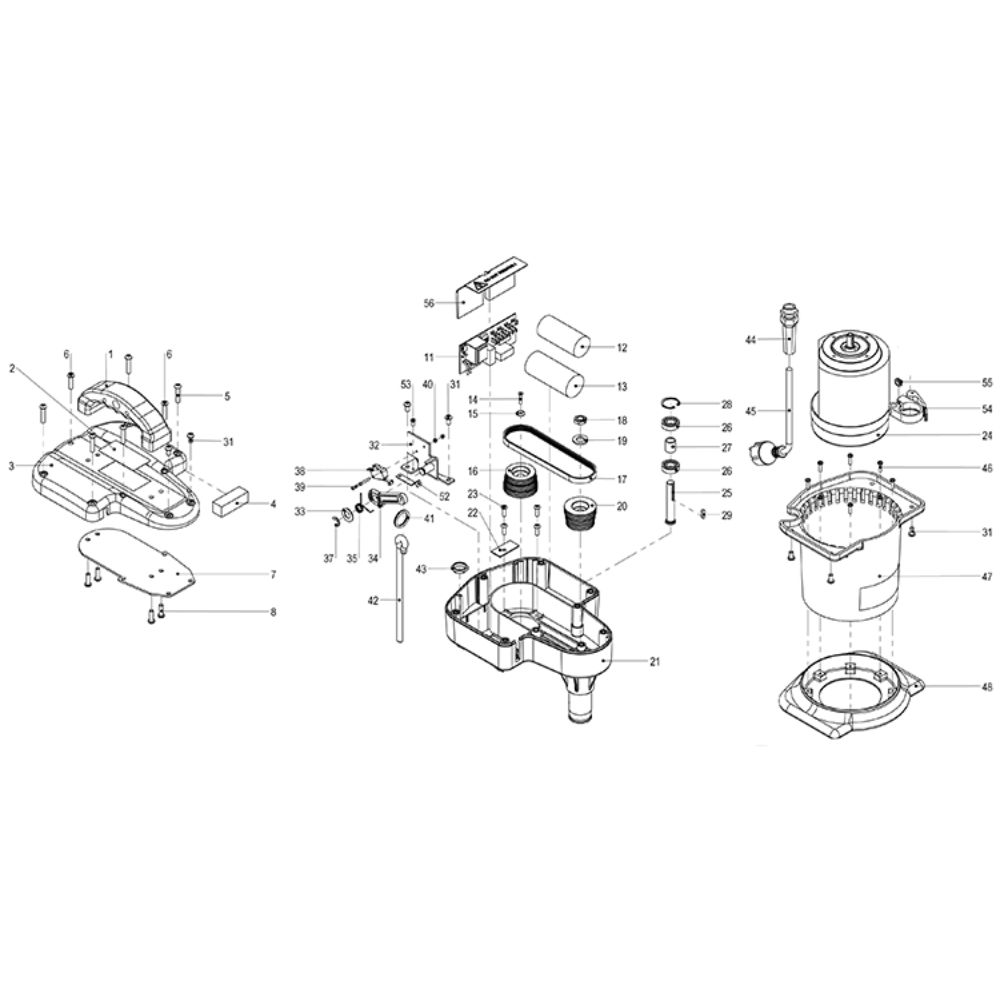

Heiniger EVO Spares
Click on the image to enlarge
1 - Handle
1 - Handle
Part number:722-760

£38.08

2 - Rating Plate 300W
2 - Rating Plate 300W
Part number:Unavailable from Manufacturer

POA

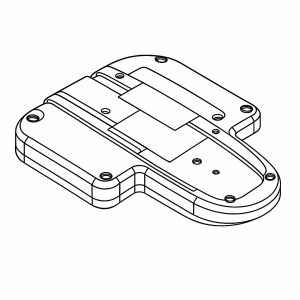

3 - Cover
3 - Cover
Part number:722-762

£41.21

4 - Sponge Rubber 20/20
4 - Sponge Rubber 20/20
Part number:722-811

£7.41

5 - LS Screw, Torx M6 x 30
5 - LS Screw, Torx M6 x 30
Part number:722-765

£1.75

6 - LS Screw, Torx M6 x 25
6 - LS Screw, Torx M6 x 25
Part number:722-766

£1.52

7 - Reinforcement Plate 240V
7 - Reinforcement Plate 240V
Part number:722-763

£31.69

8 - Screw Torx M6 x 20
8 - Screw Torx M6 x 20
Part number:722-764

£1.64

11 - Control Unit 240V
11 - Control Unit 240V
Part number:722-828

£121.05

12 - Capacitor 8uf
12 - Capacitor 8uf
Part number:722-771

£21.15

13 - Capacitor 25uf
13 - Capacitor 25uf
Part number:722-770

£34.41

14 - Countersunk Screw torx M4 x 20

£1.12

15 - Washer for Countersunk Screw M4

£0.96

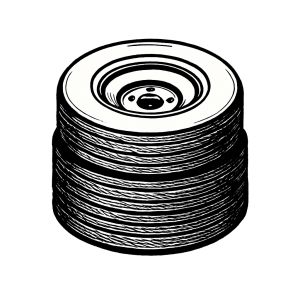

16 - Pulley Aliminium 240V
16 - Pulley Aliminium 240V
Part number:722-700-14.A

£50.12

17 - Snap-on Belt (V-Belt)
17 - Snap-on Belt (V-Belt)
Part number:722-786

£11.29

18 -  Hexagonal Nut M12 X 1/0.5D
18 - Hexagonal Nut M12 X 1/0.5D
Part number:721-748

£2.55

19 - Washer 13/24 x 2.5
19 - Washer 13/24 x 2.5
Part number:722-806

£0.64

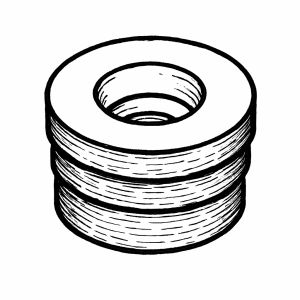

20a - Pulley - Plastic EVO 240V Old Version

POA

20b - Pulley - Plastic EVO 240V New Version

POA

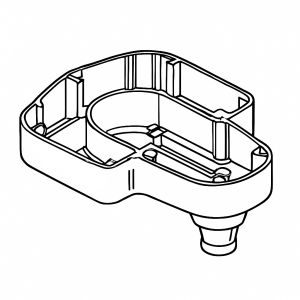

21 - Driving House mod.b
21 - Driving House mod.b
Part number:722-843

£92.00

22 - Speed Control Sensor
22 - Speed Control Sensor
Part number:722-785

£34.41

23 - LS-screw Torx M5x16
23 - LS-screw Torx M5x16
Part number:722-804

£2.22

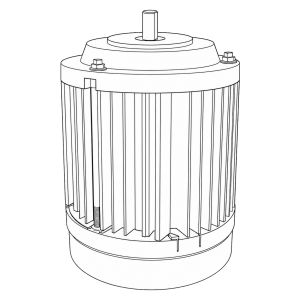

24 - Motor 240V
24 - Motor 240V
Part number:722-803

£198.62

25 - Gear Shaft
25 - Gear Shaft
Part number:722-808

£54.74

26 - Radial Ball Bearing Race 6001-2Z

£10.20

27 - Spacer Sleeve
27 - Spacer Sleeve
Part number:722-810

£8.30

28 -  Retaining Ring for Bores ø28

£0.80

29 - Spring Key 4x4x16
29 - Spring Key 4x4x16
Part number:721-723

£1.40

31 - LS Screw, Torx M6x12
31 - LS Screw, Torx M6x12
Part number:722-835

£1.45

32 - Switch Support
32 - Switch Support
Part number:722-790

£38.01

33 - Washer 12/18 x1
33 - Washer 12/18 x1
Part number:722-796

£0.80

34 - Lever for Switch
34 - Lever for Switch
Part number:722-789

£11.63

35 - Spring for Switch
35 - Spring for Switch
Part number:722-794

£5.58

37 - Circlip for Shaft (Size 9)
37 - Circlip for Shaft (Size 9)
Part number:722-795

£0.64

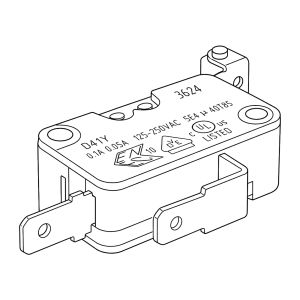

38 - Micro-switch
38 - Micro-switch
Part number:722-791

£9.38

39 - Socket Head cap screw M3x20
39 - Socket Head cap screw M3x20
Part number:722-792

£0.21

40 - Hexagonal Nut Self-Securing M3

£0.21

41 & 42 - Cord Black 9x2000mm with Ring Spanner 030
41 & 42 - Cord Black 9x2000mm with Ring Spanner 030
Items 41 & 42 combined.
Part number:722-805

£7.62

43 - Hexagonal Nut M20 x1.5
43 - Hexagonal Nut M20 x1.5
Part number:722-777

£2.98

44 - Anti Kink Sleeve M20 x1.5
44 - Anti Kink Sleeve M20 x1.5
Part number:722-776

£7.67

45A - Cable Complete with EURO-type Plug

45B - Cable Complete with UK-type Plug

£28.56

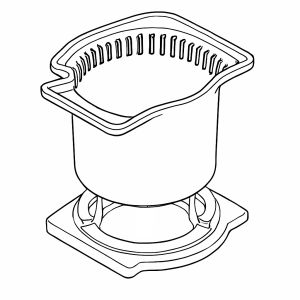

47/48 - Motor Housing Complete, incl. base

POA

46 -  PT Screw KA40 x 16 T20
46 - PT Screw KA40 x 16 T20
Part number:707-094

£0.80

50A -  Micro-Fuse 2.5A/240V
50A - Micro-Fuse 2.5A/240V
Part number:722-831

£2.55

52 - Catch Spring
52 - Catch Spring
Part number:722-787

£6.66

53 - PH Screw M4 x 10
53 - PH Screw M4 x 10
Part number:706-523

£1.28

54 -  Seat Clamp with Quick Release bolt Ø34.9

£9.25

55 - Center Washer
55 - Center Washer
Part number:722-886

£11.02

56 - Cover
56 - Cover
Part number:722-846

£4.02

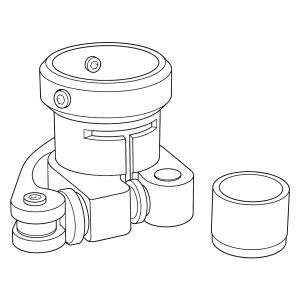

Quick Clamp Kit/DT Adapter Bush
Quick Clamp Kit/DT Adapter Bush
Fits a solid drive onto the Heiniger EVO machine.
Part number:722-890

£58.00
