Horner Rambo Spare Parts

Shearing Equipment|Spares|Handheld Spares|Horner Rambo Spare Parts
Horner Rambo
Complete Rear Cap Assemblies for the Rambo

1 - Left Hand Fork
1 - Left Hand Fork
Part number:H19-200

£14.00

2 - Right Hand Fork
2 - Right Hand Fork
Part number:H19-201

£14.00

3 - Fork Retaining Spring
3 - Fork Retaining Spring
Part number:H19-202

£3.00

4 - Fork Retainer Screw
4 - Fork Retainer Screw
Part number:H19-203

£0.50

5 - Fulcrum Cup
5 - Fulcrum Cup
Part number:H19-204

£7.12

6 - Tension Pin Cup
6 - Tension Pin Cup
Part number:H19-205

£8.00

Tension Pin Retaining Spring
Tension Pin Retaining Spring
Part number:H19-206

£2.00

8 - Bare Fork Body
8 - Bare Fork Body
Part number:H19-207

£35.00

9 - Complete Fork Body
9 - Complete Fork Body
Part number:H19-208

£59.00

10 - Comb Screw
10 - Comb Screw
Part number:H19-209

£4.00

11 - Fulcrum Post Nut
11 - Fulcrum Post Nut
Part number:H19-115

£2.00

12 - Fulcrum Post for Rambo
12 - Fulcrum Post for Rambo
Part number:H19-116

£8.00

13 - Threaded Bush
13 - Threaded Bush
Part number:H19-117

£11.00

14 - Tension Circlip
14 - Tension Circlip
Part number:H19-213

£1.25

15 - Tension Pin
15 - Tension Pin
Part number:H19-214

£8.00

16 - Sliding Sleeve
16 - Sliding Sleeve
Part number:H19-215

£8.00

17 - Tension Knob
17 - Tension Knob
Part number:H19-118

£16.00

18 - Rubber Bung
18 - Rubber Bung
Part number:H19-217

£1.21

19 - Safety Screw
19 - Safety Screw
Part number:H19-132

£3.00

20 - Handle Head
20 - Handle Head
Part number:H60-001

£32.00

21 - Handle Cover
21 - Handle Cover
Part number:H60-002

£12.00

22 - Handle Gear Box Screw
22 - Handle Gear Box Screw
Part number:H60-003

£1.00

23 - Oil Hole Screw
23 - Oil Hole Screw
Part number:H60-004

£1.00

24 - Oil Hole Screw Washer
24 - Oil Hole Screw Washer
Part number:H60-005

£0.25

25 - Heat Proof Sleeve
25 - Heat Proof Sleeve
Part number:H60-006

£12.00

26 - Protective Ring
26 - Protective Ring
Part number:H60-007

£4.80

27 - Crank Roller
27 - Crank Roller
Part number:H19-222

£8.50

28 - Crank Body
28 - Crank Body
Part number:H60-008

£6.80

29A - Gear Box (Pre-2018 Machines)
29A - Gear Box (Pre-2018 Machines)
Rambo gear box for machines bought BEFORE May, 2018.

This product has now been discontinued. Please call us for more information.
This product has now been discontinued

£66.00

29B - Gear Box (Post-2018 Machines)
29B - Gear Box (Post-2018 Machines)
Rambo gear box for machines bought AFTER May, 2018.
Part number:H60-011B

£66.00

30 - Gear Box Motor Screw for Rambo

£1.00

31 - Spring Washer
31 - Spring Washer
Part number:H60-010

£0.25

32 - O Ring (Outer)
32 - O Ring (Outer)
Part number:H60-012

£0.22

33 - Hexagon Headed Bolt
33 - Hexagon Headed Bolt
Part number:H60-013

£0.60

33 - Motor Guard
33 - Motor Guard
Part number:H60-014

£16.00

35 - Rear Cap Screw
35 - Rear Cap Screw
Part number:H60-015

£0.95

36A - Motor Unit 6.3
36A - Motor Unit 6.3
Rambo motor unit for machines bought before May 2018.

Part number:H60-016A

£38.00

36B - Motor Unit 6.3 (Post-2018 Machine)
36B - Motor Unit 6.3 (Post-2018 Machine)
Rambo motor unit for machines bought between May 2018 & November 2022.
Includes part no.37 (motor filtering net).
Part number:H60-016B

£38.00

36C - Motor Unit (4.8)
36C - Motor Unit (4.8)
Rambo Motor Unit for machines bought after November 2022.
Includes part no.37 (motor filtering net).
Part number:H60-016C

£38.00

37 - Motor Filtering Net
37 - Motor Filtering Net
Part number:H60-027

£1.50

38 - Gland Nut
38 - Gland Nut
Part number:H60-018

£0.80

39 - Rear Cap Presser
39 - Rear Cap Presser
Part number:H60-020

£2.00

40 - Filtering Net
40 - Filtering Net
Part number:H60-019

£2.50

41 - Rear Cap
41 - Rear Cap
Part number:H60-017B

£7.00

42 - Gland (Spring Type)
42 - Gland (Spring Type)
Part number:H60-024

£9.00

43 & 44 - Switch and Wire
43 & 44 - Switch and Wire
Complete product combined of parts 43 and 44.

Part Numbers: Red Terminal - H60-021A, Blue Terminal - H60-021B

£7.50

44 - Insulated Wire
44 - Insulated Wire
Part number:H60-022

£1.50

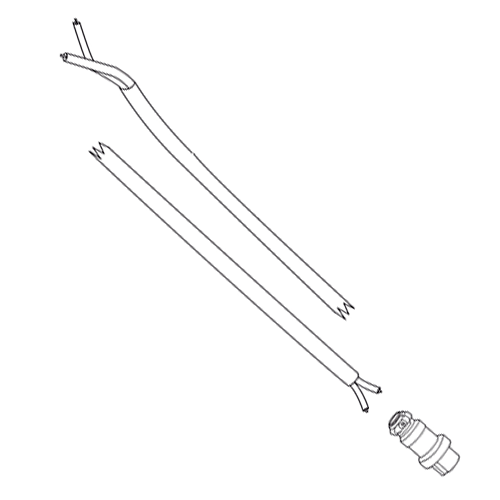

45 - Straight Flex CB Plug
45 - Straight Flex CB Plug
Part number:H60-041

£18.00

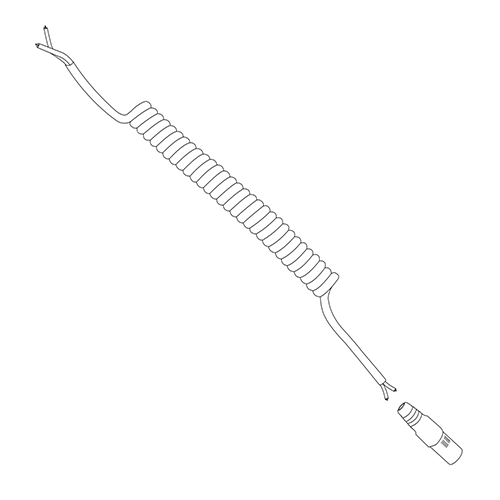

46 - Coiled Flex XLR Plug
46 - Coiled Flex XLR Plug
Part number:H60-042

£18.00
