Heiniger Xplorer Spare Parts

Shearing Equipment|Spares|Handheld Spares|Heiniger Xplorer Spare Parts

Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

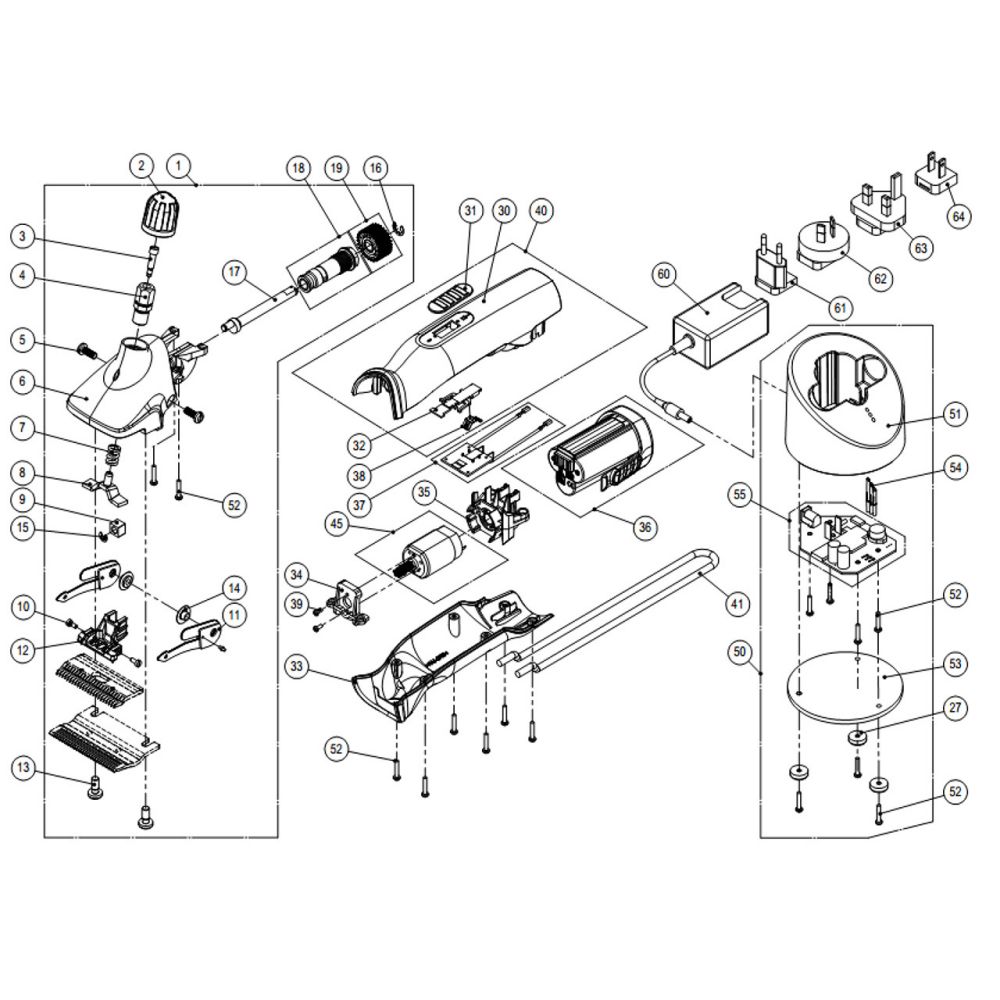

Heiniger Xplorer

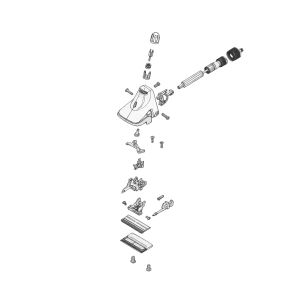

1 - Clipper Head complete with Blades

Part number:708-540

£126.41

Details ...

2 - Tension Nut

Part number:708-160

£1.50

Details ...

3 - Distance Screw

Part number:706-510

£4.78

Details ...

4 - Tension Sleeve

Part number:707-091

£8.91

Details ...

5 - PH-Screw M5 x 14

Part number:706-520

£0.64

Details ...

6 - Clipper Head Case

Part number:708-141

£60.59

Details ...

7 - Pressure Spring

Part number:706-517

£1.59

Details ...

8 - Pressure Plate

Part number:706-511

£4.04

Details ...

9 - Crank Drive Block

Part number:708-507

£4.02

Details ...

10 - Socket Head Screw (partially threaded) M3 x 6

Part number:706-525

£1.59

Details ...

11 - Laminated Spring

Part number:706-518

£8.09

Details ...

12 - Drive Carrier

Part number:708-150

£11.76

Details ...

13 - Comb Screw

Part number:706-521

£1.59

Details ...

14 - Centering Bush Complete

Part number:708-146

£4.04

Details ...

15 - Circlip for Shaft Size 3.73

Part number:707-088

£1.28

Details ...

16 - Circlip for Shaft Size 6

Part number:706-524

£0.64

Details ...

17 - Crankshaft

Part number:708-145

£9.86

Details ...

18 - Crank Spindle Sleeve

Part number:708-142

£15.57

Details ...

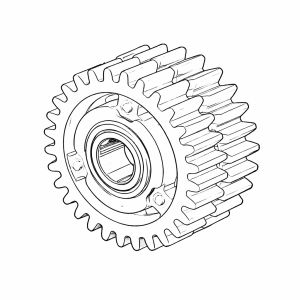

19 - Cogwheel Z27

Part number:708-543

£8.09

Details ...

27 - Rubber Foot

Part number:707-882

£1.64

Details ...

30 - Upper Motor Housing

Part number:708-430

£34.88

Details ...

31 - Switch Lever Black

Part number:708-061

£1.43

Details ...

32 - Catch Spring for Switch

Part number:708-461

£3.50

Details ...

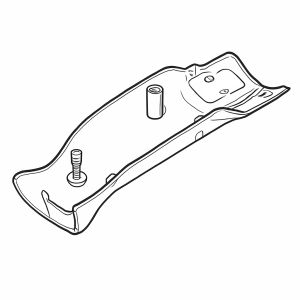

33 - Lower Motor Housing

Part number:708-450

£15.71

Details ...

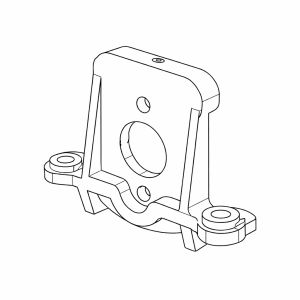

34 - Front Motor Holder

Part number:708-510

£3.61

Details ...

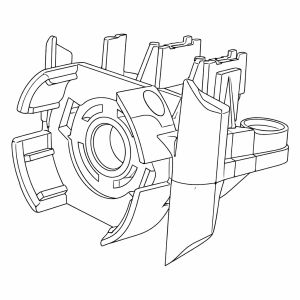

35 - Rear Motor Holder

Part number:708-511

£15.50

Details ...

36 - Lithium Ion Battery

Part number:708-520

£70.68

Details ...

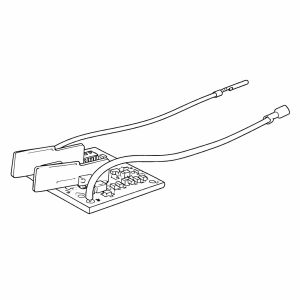

37 - PCB

Part number:708-480

£32.70

Details ...

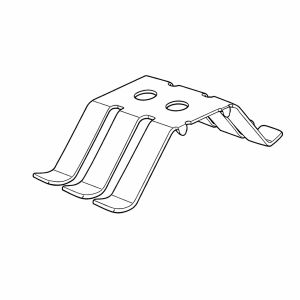

38 - Switch Contact

Part number:707-842

£2.45

Details ...

39 - PH-Screw M2.6 x 6

Part number:701-711

£1.28

Details ...

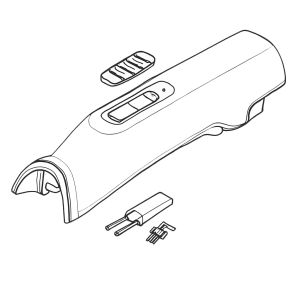

40 - Upper Motor Housing

Part number:708-440

£29.17

Details ...

41 - Cord

Part number:707-555

£4.36

Details ...

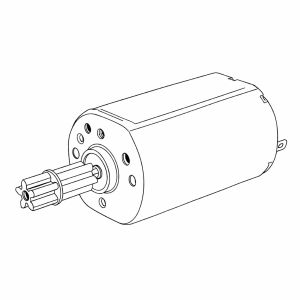

45 - Motor Complete

Part number:708-500

£21.28

Details ...

50 - Charger Complete

Part number:708-550

£71.67

Details ...

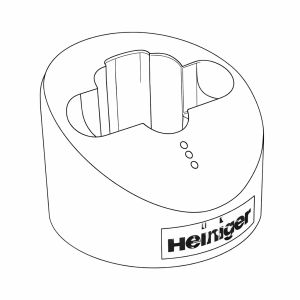

51 - Housing for Charger

Part number:708-570

£9.11

Details ...

52 - Screw Kombitorx KA30 x 16

Part number:707-557

£0.80

Details ...

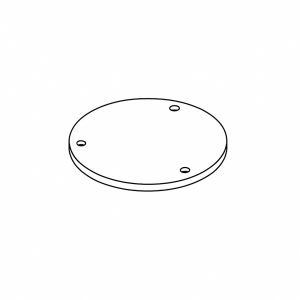

53 - Baseplate to Charger

Part number:708-563

£7.41

Details ...

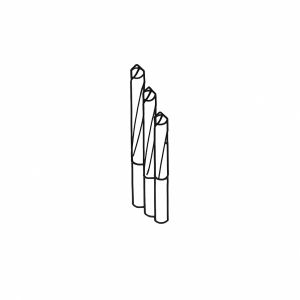

54 - Light Conductor to Charger

Part number:708-564

£3.93

Details ...

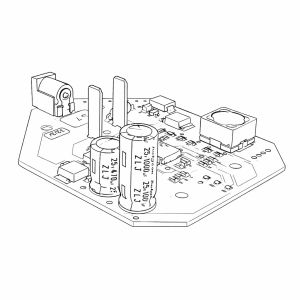

55 - PCB Charger

Part number:708-560

£61.88

Details ...

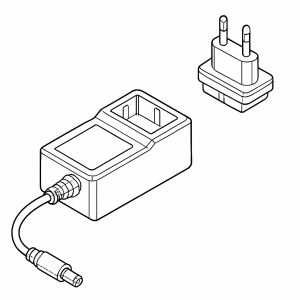

60A - Power Supply Unit 110-240V incl. plug EU

Part number:708-590.EU

£35.11

Details ...

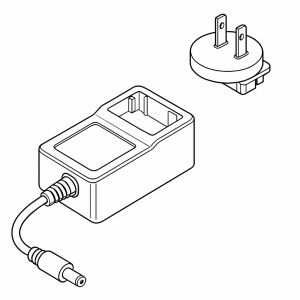

60B - Power Supply Unit 110-240V incl. plug AU-ARG

Part number:708-590.AU-ARG

£35.11

Details ...

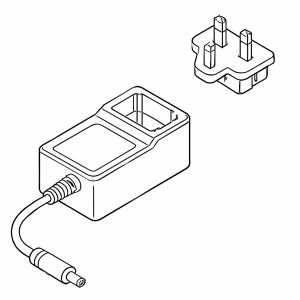

60C - Power Supply Unit 110-240V incl. plug GB

Part number:708-590.GB

£40.12

Details ...

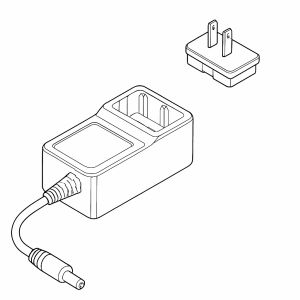

60D - Power Supply Unit 110-240V incl. plug US-JP

Part number:708-590.US-JP

£35.11

Details ...

61 - Plug EU

Part number:707-740

£5.00

Details ...

62 - Plug AU

Part number:707-742

£5.00

Details ...

63 - Plug GB

Part number:707-743

£5.00

Details ...

64 - Plug US-JP

Part number:707-744

£5.00

Details ...
