Heiniger Xtra Spare Parts

Shearing Equipment|Spares|Handheld Spares|Heiniger Xtra Spare Parts
Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

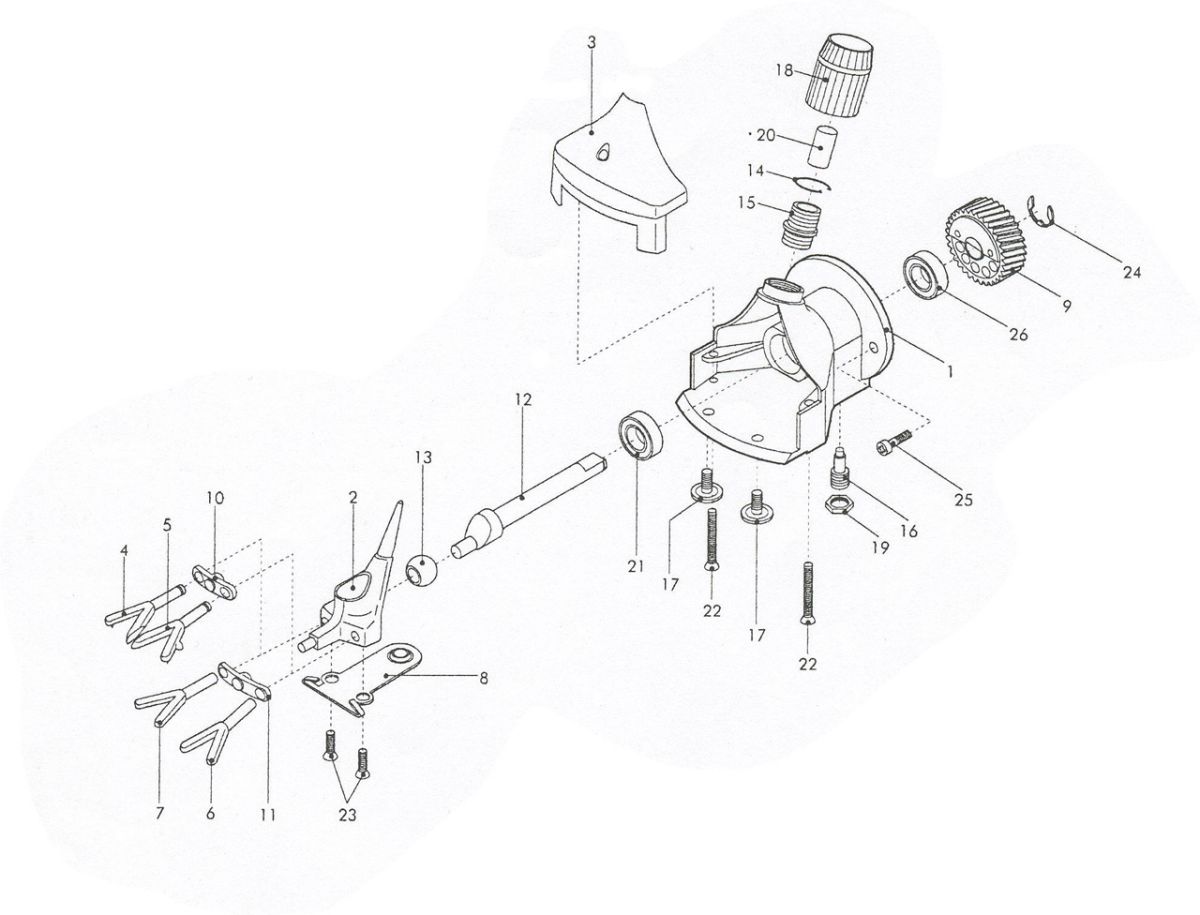

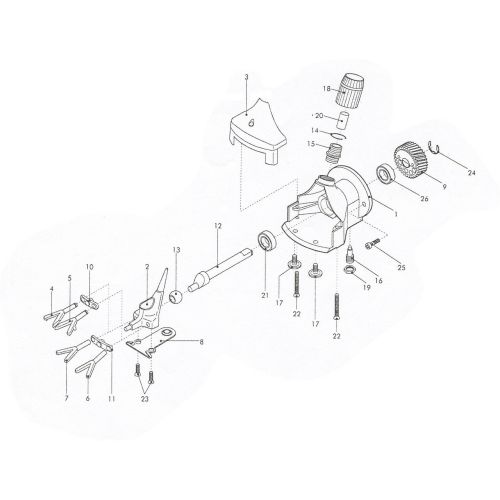

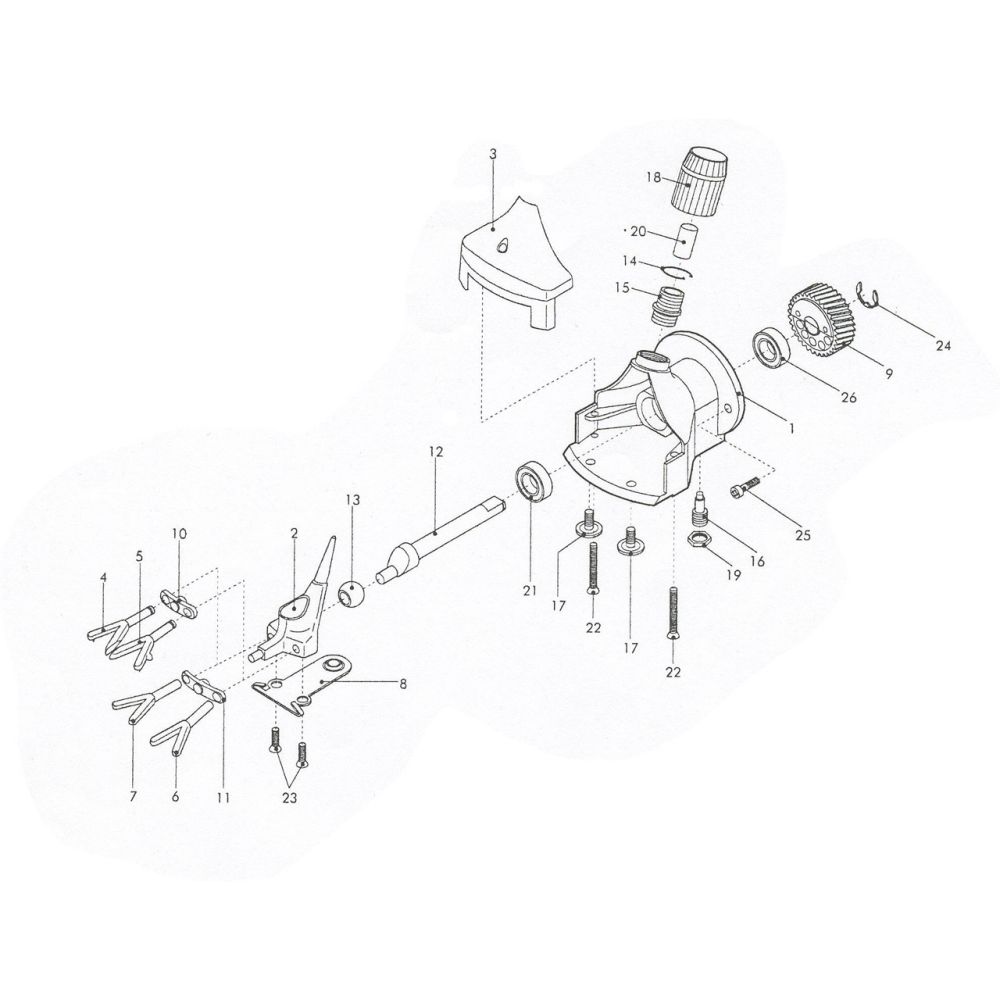

Heiniger Xtra Head

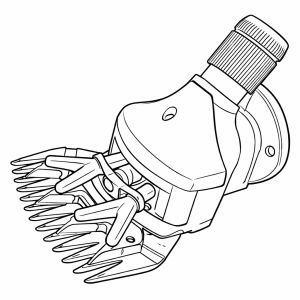

Complete Head
Complete Head
Comes with a comb and cutter
Part number:717-700.00

£170.00

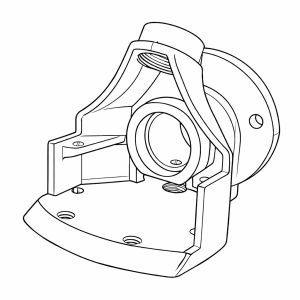

1 - Shear Head Housing
1 - Shear Head Housing
Part number:717-708

£31.57

2 - Swivelling Fork
2 - Swivelling Fork
Part number:717-701

£50.87

3 - Housing Cover
3 - Housing Cover
Part number:717-724

£7.27

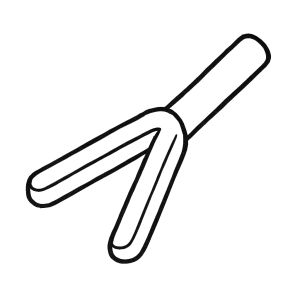

6 - Left Fork
6 - Left Fork
Part number:717-706

£18.23

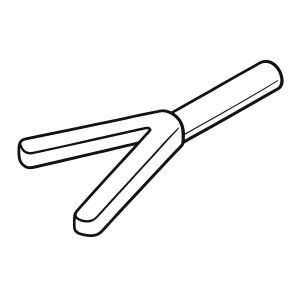

7 - Right Fork
7 - Right Fork
Part number:717-707

£18.23

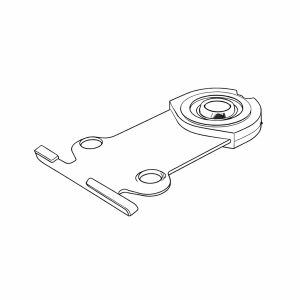

8 - Tension Link Spring
8 - Tension Link Spring
Part number:717-709

£17.60

9 - Gear 30 - Tooth Black
9 - Gear 30 - Tooth Black
Part number:717-711

£12.80

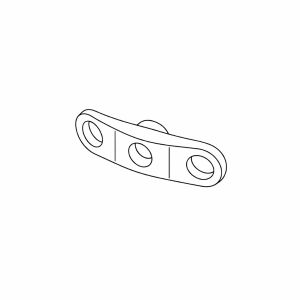

11 - Gauge Plate
11 - Gauge Plate
Part number:717-713

£13.86

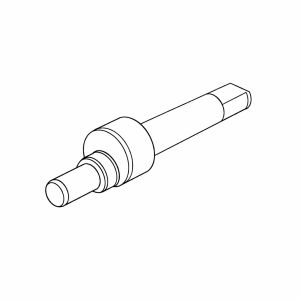

12 - Crank Spindle
12 - Crank Spindle
Part number:717-715

£15.54

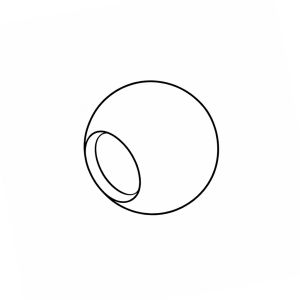

13 - Crank Roller
13 - Crank Roller
Part number:721-106

£6.58

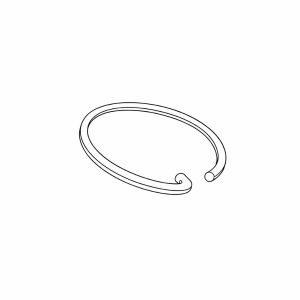

14 - Tension Retaining Ring
14 - Tension Retaining Ring
Part number:721-111

£1.99

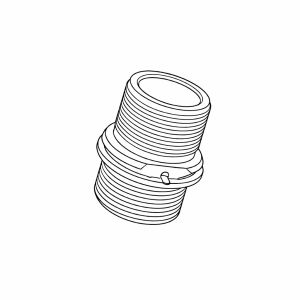

15 - Lid Bush
15 - Lid Bush
Part number:721-110

£10.92

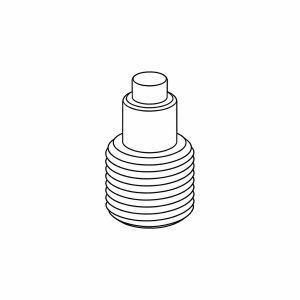

16 - Fulcrum Post
16 - Fulcrum Post
Part number:717-719

£3.91

17 - Comb Screw
17 - Comb Screw
Part number:717-720

£4.42

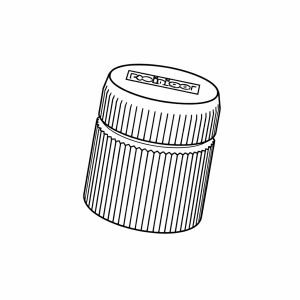

18 - Tension Nut
18 - Tension Nut
Part number:721-114

£14.65

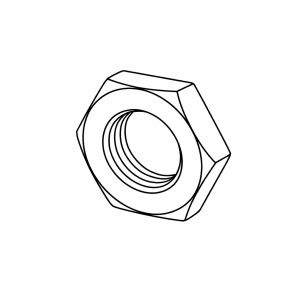

19 -Lock Nut
19 -Lock Nut
Part number:721-103

£3.54

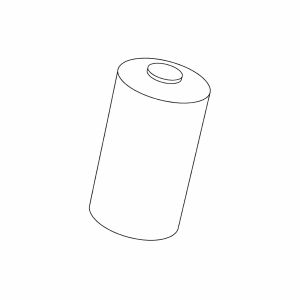

20 - Sliding Sleeve
20 - Sliding Sleeve
Part number:717-723

£8.28

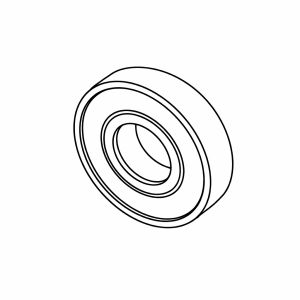

21 - Ball Bearing 608 2 RS

£8.40

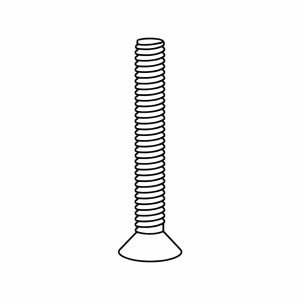

22 - L.S Screw M4 x 28
22 - L.S Screw M4 x 28
Part number:717-726

£0.24

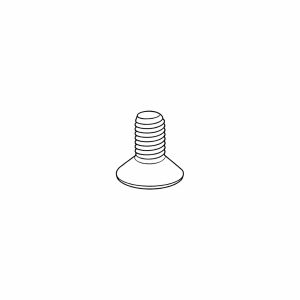

23 - S.Screw M4 x 8
23 - S.Screw M4 x 8
Part number:717-727

£0.48

24 - Circlip Benzing 6
24 - Circlip Benzing 6
Part number:706-524

£0.16

25 - P.H Screw M4 x 10
25 - P.H Screw M4 x 10
Part number:706-523

£0.57

26 - Ball Bearing 608 ZZ
26 - Ball Bearing 608 ZZ
Part number:701-636

£8.40

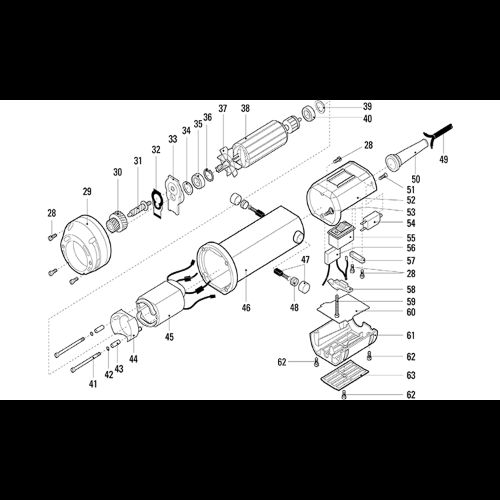

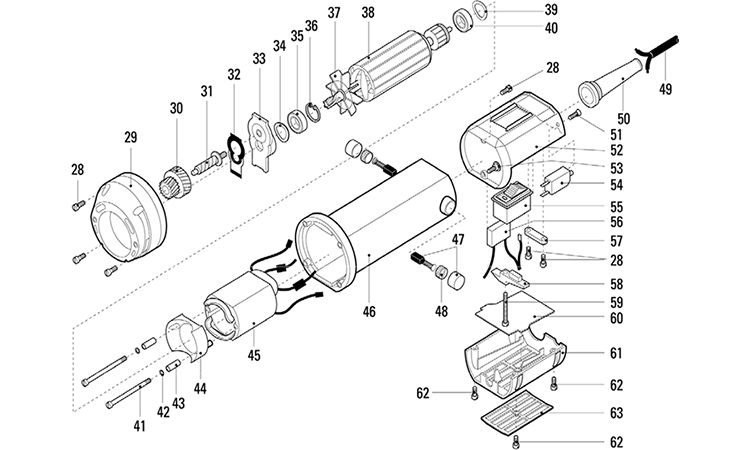

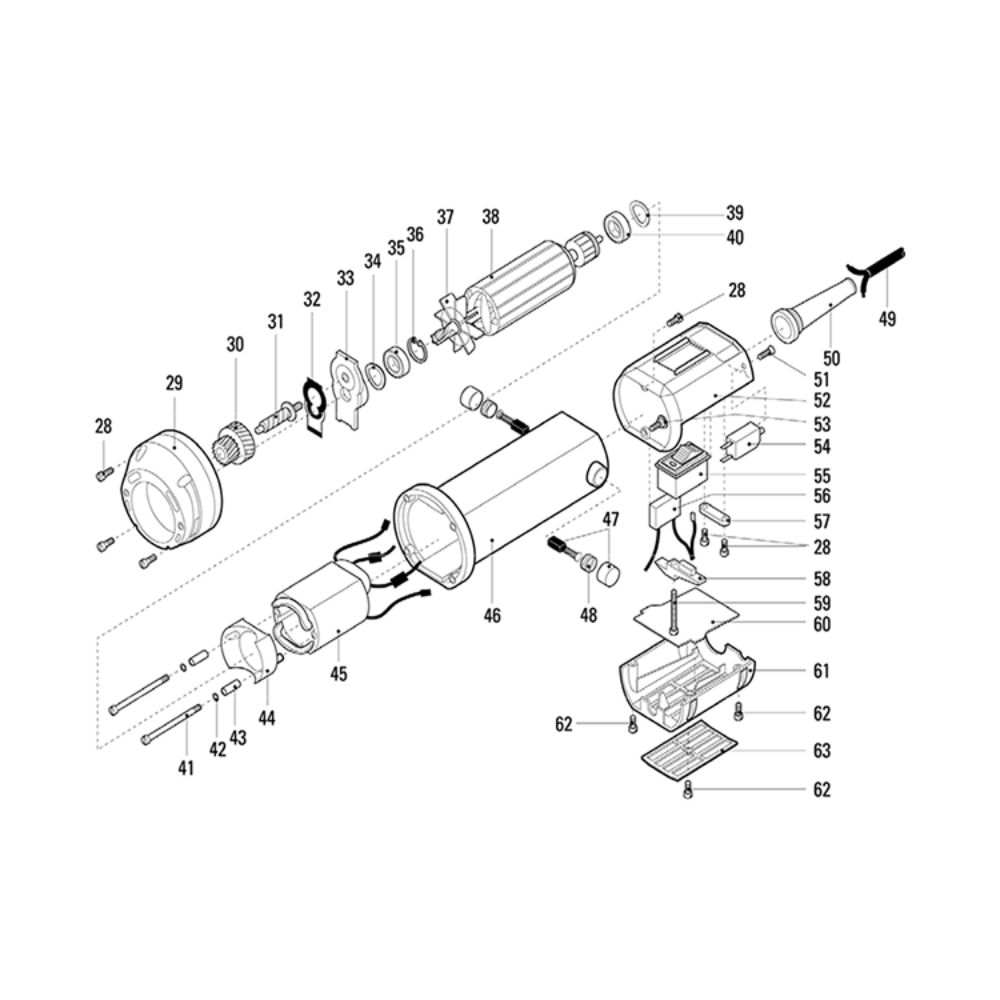

Heiniger Xtra Body

28 - Z Screw M3.5 x 8
28 - Z Screw M3.5 x 8
Part number:701-640

£0.34

29 - Gear Box
29 - Gear Box
Part number:701-602

£12.20

30 - Gear 21/12 Teeth
30 - Gear 21/12 Teeth
Part number:701-613

£32.13

31 - Spindle
31 - Spindle
Part number:701-615

£6.67

32 - Seal
32 - Seal
Part number:701-612

£6.72

33 - Centering Piece
33 - Centering Piece
Part number:701-610

£9.25

34 - Spring Disc 608
34 - Spring Disc 608
Part number:701-638

£0.86

35 - Ball Bearing 608 ZZ
35 - Ball Bearing 608 ZZ
Part number:701-636

£8.40

Retaining Ring for Bores Ø22 for Heiniger Xtra

POA

37 & 38 - Rotor Complete
37 & 38 - Rotor Complete
Part number:701-609

£83.44

39 - Spring Disc 626
39 - Spring Disc 626
Part number:701-637

£0.78

40 - Ball Bearing 626 ZZ
40 - Ball Bearing 626 ZZ
Part number:701-635

£8.40

41 - Fillister Head Screw M3 x 7.25

£1.34

42 - Washer M3
42 - Washer M3
Part number:701-616

£0.10

43 - Distance Bush
43 - Distance Bush
Part number:701-614

£1.58

44 - Airflow Guide
44 - Airflow Guide
Part number:701-617

POA

45 - Stator 240V
45 - Stator 240V
Part number:701-622

£48.20

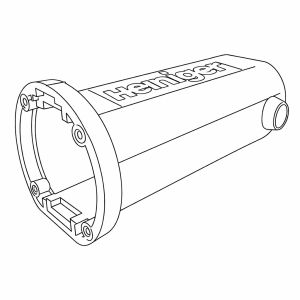

46 - Motor Housing
46 - Motor Housing
Part number:701-600-25A

£39.02

47 - Brush and Spring (pair)
47 - Brush and Spring (pair)
Part number:701-633

£9.45

48 - Brush Cap
48 - Brush Cap
Part number:701-634

£1.21

49 - Cable with Plug GB
49 - Cable with Plug GB
Part number:701-878

£12.00

50A - Cable Sleeve for Euro/Aus Cord

£3.90

50B - Cable Sleeve for USA/GB/12V Cord

£5.01

51 - PT Screw KA 25 x 6
51 - PT Screw KA 25 x 6
Part number:701-643

£0.48

52 - Switch Housing Upper
52 - Switch Housing Upper
Part number:701-603

£18.79

53 - Retaining Screw
53 - Retaining Screw
Part number:701-621

£1.56

54 - Overload Switch
54 - Overload Switch
Part number:701-630

£17.16

55 - Overload Switch
55 - Overload Switch
Part number:701-631

£12.80

56 - Capacitor 0.15UF 240V
56 - Capacitor 0.15UF 240V
Part number:701-669

£8.87

57 - Cable Grip for USA/GB/12V Cord

£1.31

58 - Clamp
58 - Clamp
Part number:701-619

POA

59 - Socket Head Cap Screw M3x25
59 - Socket Head Cap Screw M3x25
Part number:701-642

POA

60 - Dust Cover
60 - Dust Cover
Part number:701-627

£1.89

61 - Switch Housing Lower
61 - Switch Housing Lower
Part number:701-605

£11.04

62 - Z Screw M3 x 6
62 - Z Screw M3 x 6
Part number:701-641

£0.24

63 - Filter Complete
63 - Filter Complete
Part number:701-600-30A

£8.32
