Lister Fusion Clipper Spare Parts

Shearing Equipment|Spares|Handheld Spares|Lister Fusion Clipper Spare Parts
Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

IMPORTANT: So as not to void your warranty, we recommend the motors and the PCB should be replaced together.

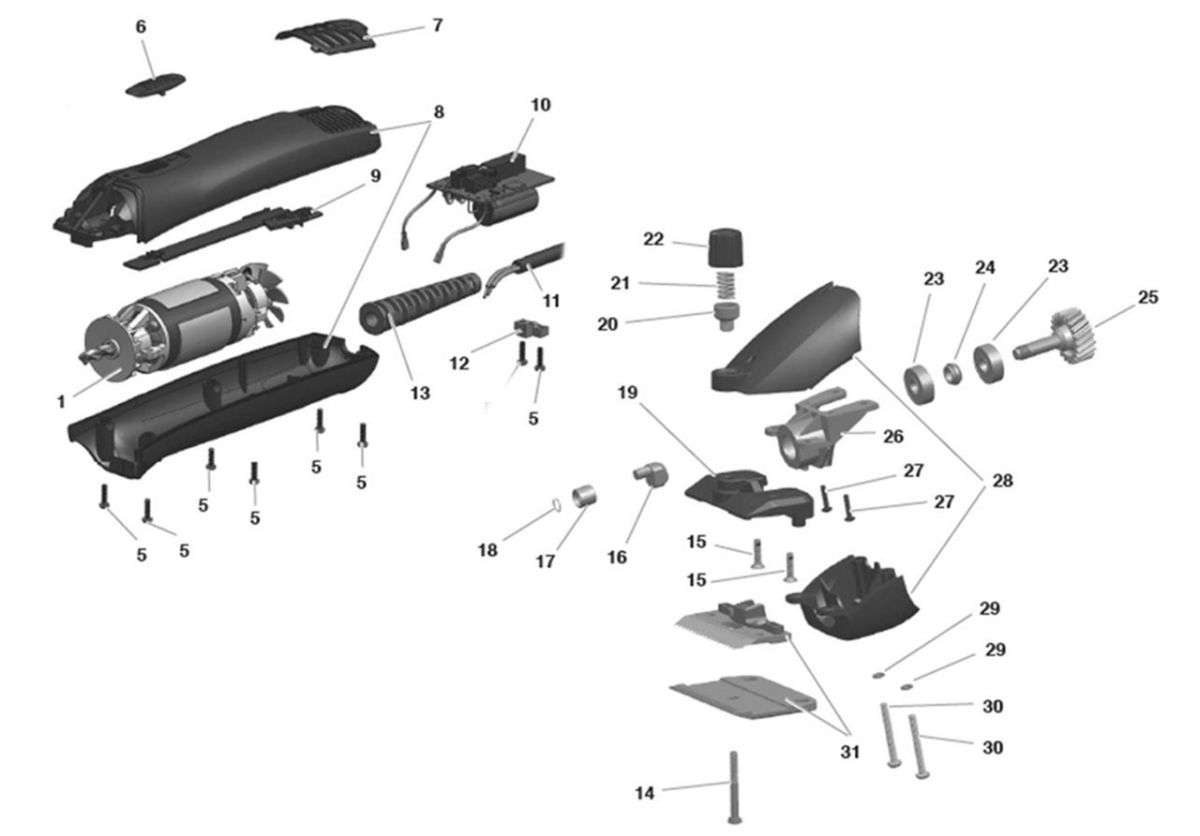

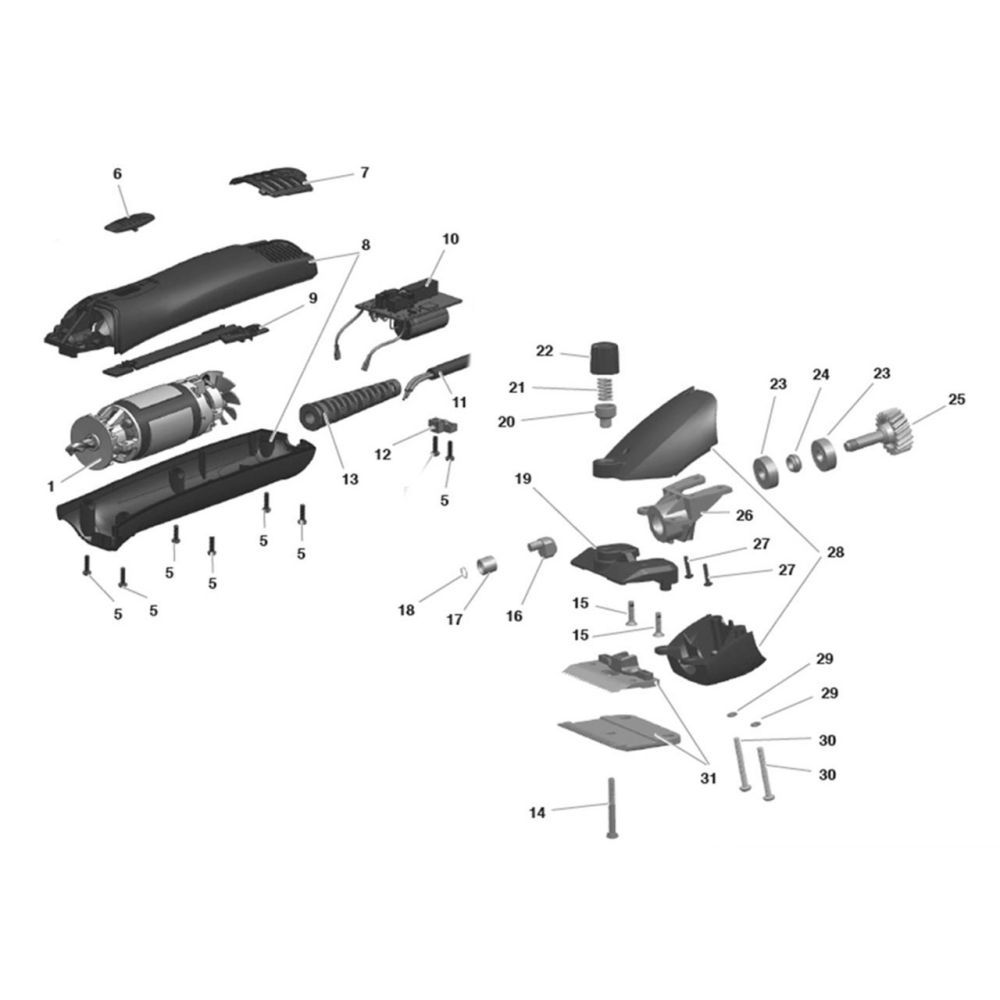

Lister Fusion Clipper

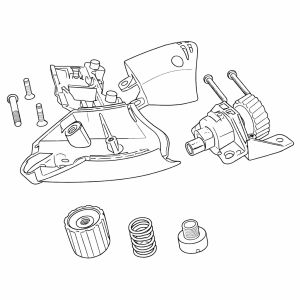

Clipper Head (Complete)
Clipper Head (Complete)
Part number:258-41000

£100.83

1 - Motor 220-240V
1 - Motor 220-240V
It is recommended to replace the motor and PCB together
Part number:258-40230/258-40550

£72.75

2 - Stator Assembly
2 - Stator Assembly
Lister only supply this item as a Complete Motor. Please see item 1.
Part number:258-40520

£21.87

3 - Motor Brush Single Spare
3 - Motor Brush Single Spare
Part number:258-40530

£3.51

4 - Rotor Assembly Spare (220-240V)
4 - Rotor Assembly Spare (220-240V)
Lister only supply this item as a Complete Motor. Please see item 1.
Part number:258-40500

£43.62

5 - Lower Case Screw M3 x 8
5 - Lower Case Screw M3 x 8
Part number:258-33670

£0.98

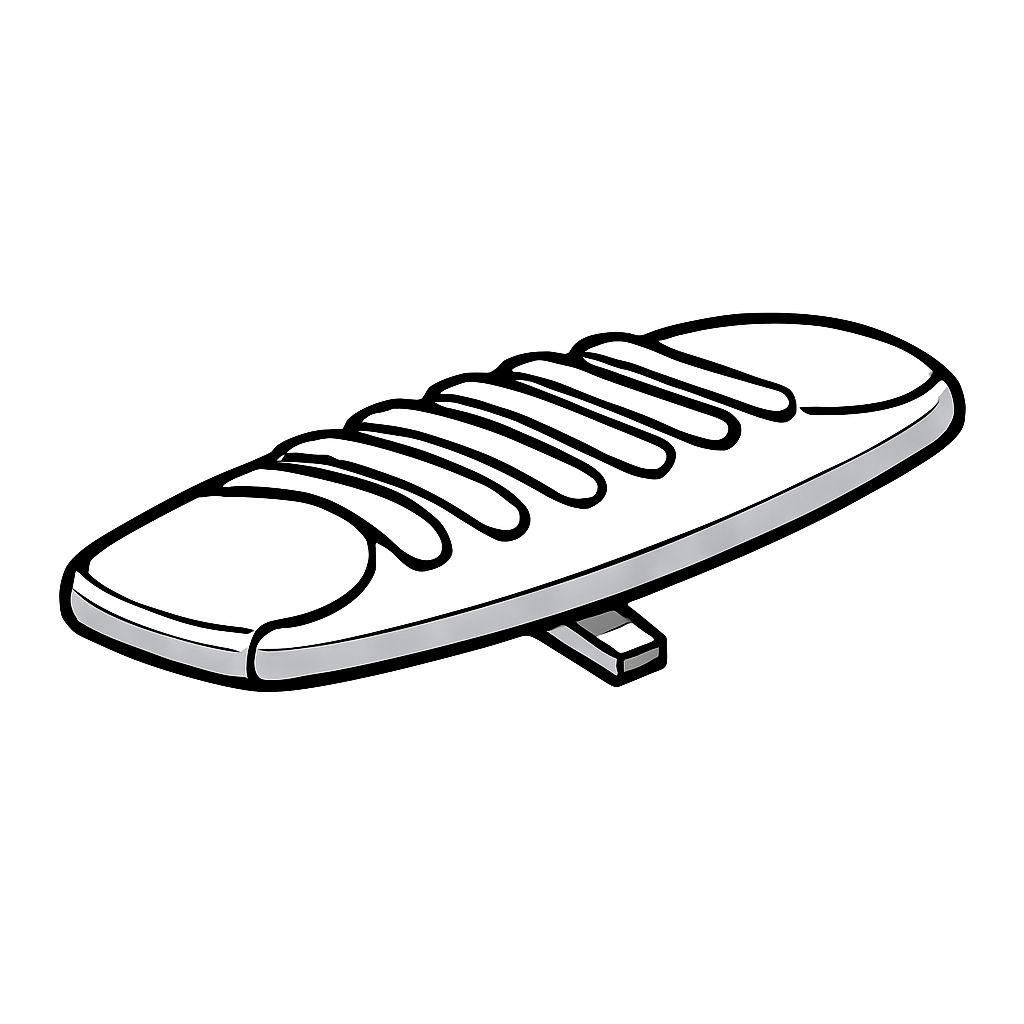

6 - Switch Button (Black)
6 - Switch Button (Black)
Part number:258-40120

£3.10

7 - Filter (Black)
7 - Filter (Black)
Part number:258-40110

£4.32

8a - Red Casing
8a - Red Casing
Part number:258-40101

£11.19

8b - Blue Casing
8b - Blue Casing
Part number:258-40102

£11.19

9 - Switch Lever 2 Speed
9 - Switch Lever 2 Speed
Part number:258-40130

£1.87

PCB 220-240V 2 Speed for Lister Fusion Clipper
PCB 220-240V 2 Speed for Lister Fusion Clipper
It is recommended to replace the motor and PCB together
Part number:258-40140

£44.18

11a - Replacement Cable UK

£12.00

12 - Cable Clamp Bridge
12 - Cable Clamp Bridge
Part number:258-33590

£0.99

13 - Grommet
13 - Grommet
Part number:258-37070

£2.15

14 - Tension Bolt M4.5
14 - Tension Bolt M4.5
Part number:258-40950

£4.16

15 - Screw M4 x 16mm CSK (Self-locking)

£1.49

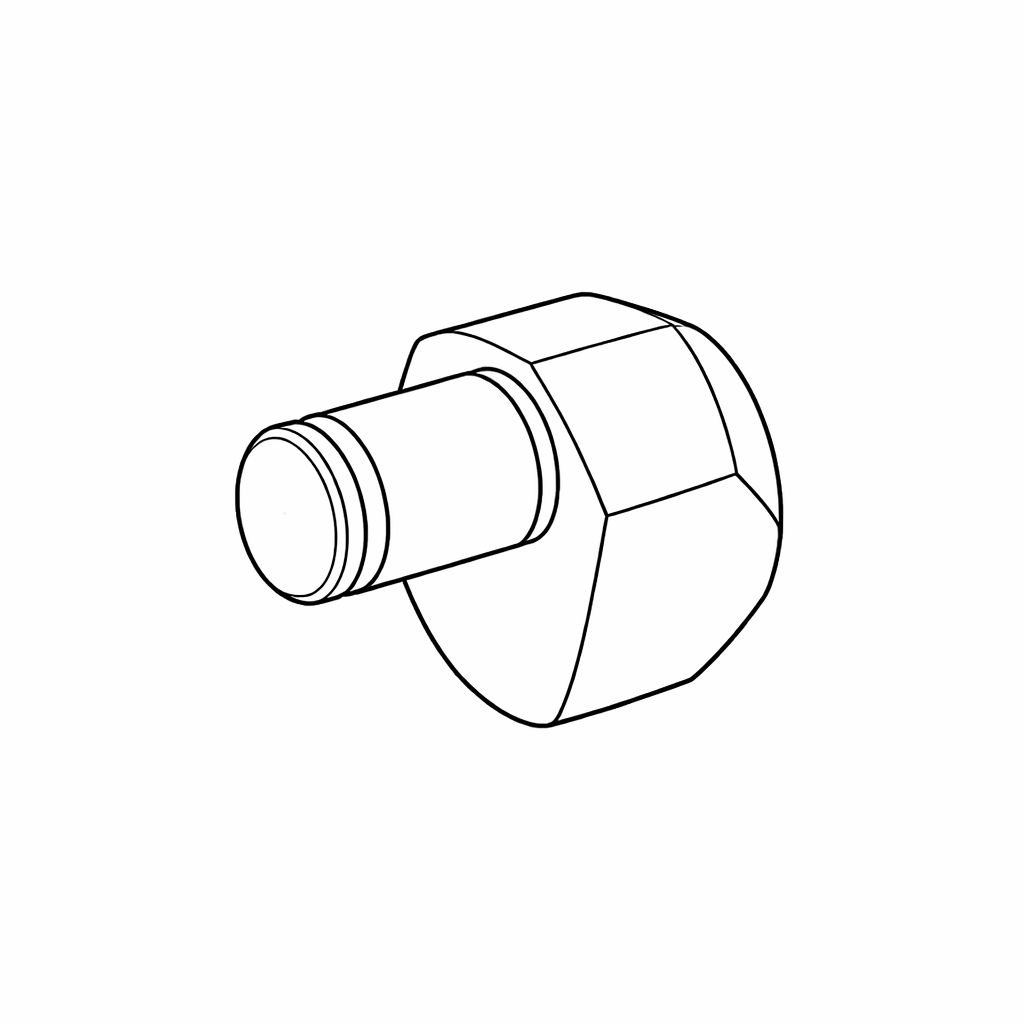

16 - Crank Head
16 - Crank Head
Part number:258-00061

£18.79

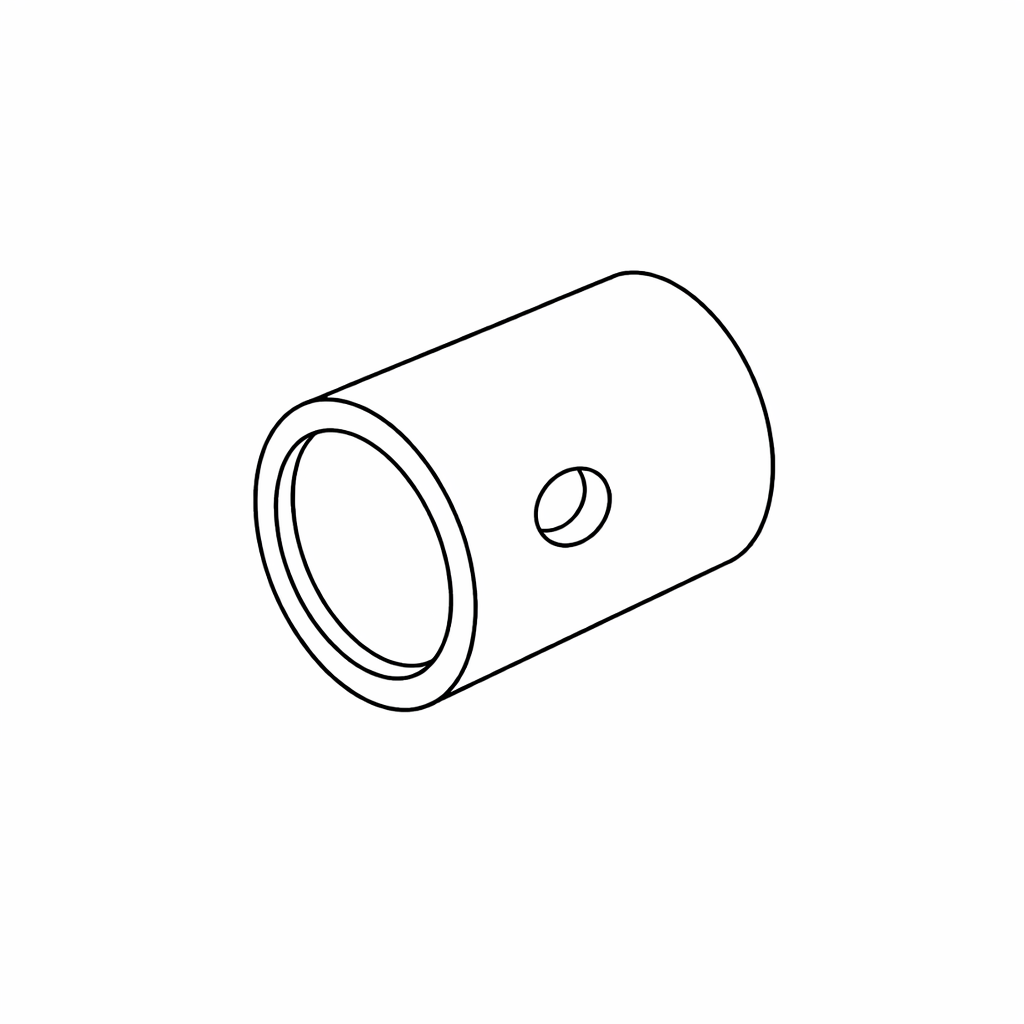

17 - Crank Roller
17 - Crank Roller
Part number:258-00057

£11.22

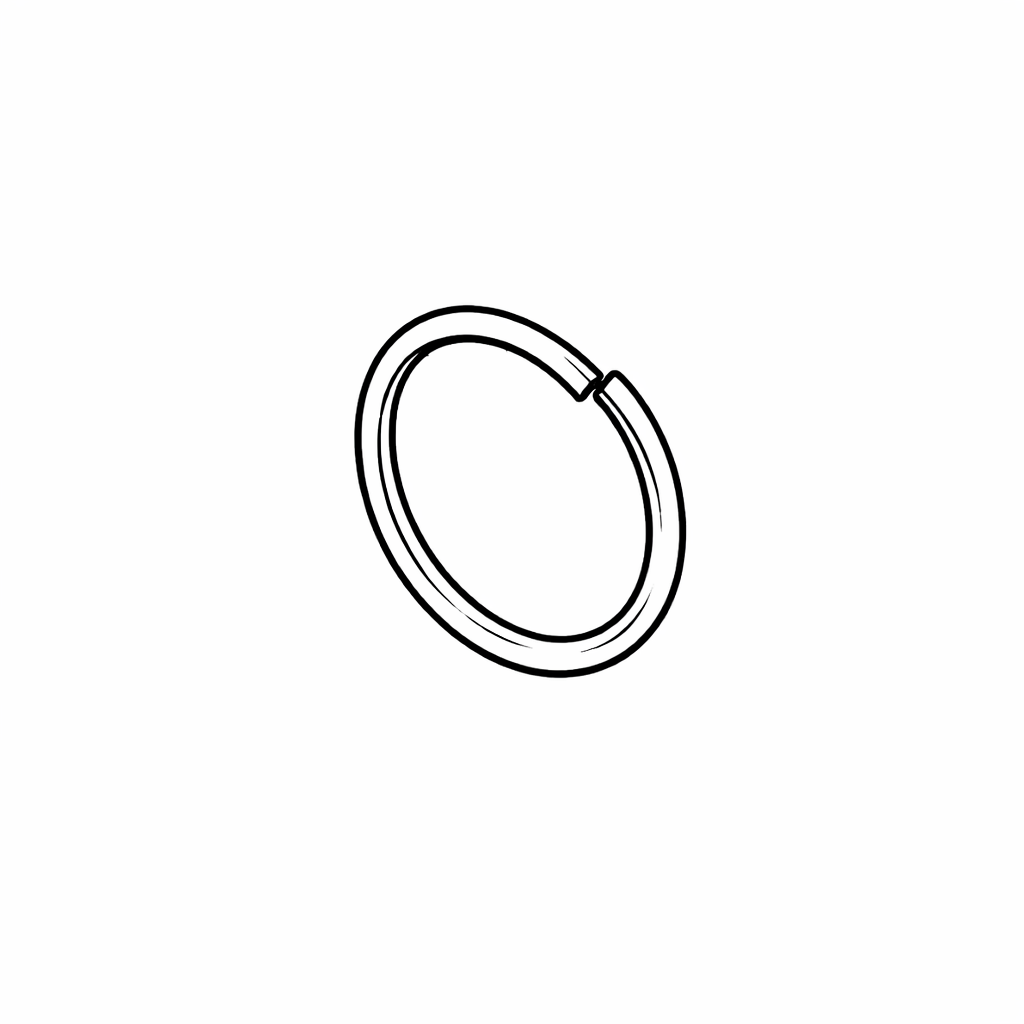

18 - Crank Roller Spring
18 - Crank Roller Spring
Part number:258-00062

£0.50

19 - Head Machined
19 - Head Machined
Part number:258-40860

£32.29

20 - Head Front Screw
20 - Head Front Screw
Part number:258-40870

£3.80

21 - Tension Spring
21 - Tension Spring
Part number:258-10061

£2.36

22 - Tension Nut M4.5
22 - Tension Nut M4.5
Part number:258-40850

£7.35

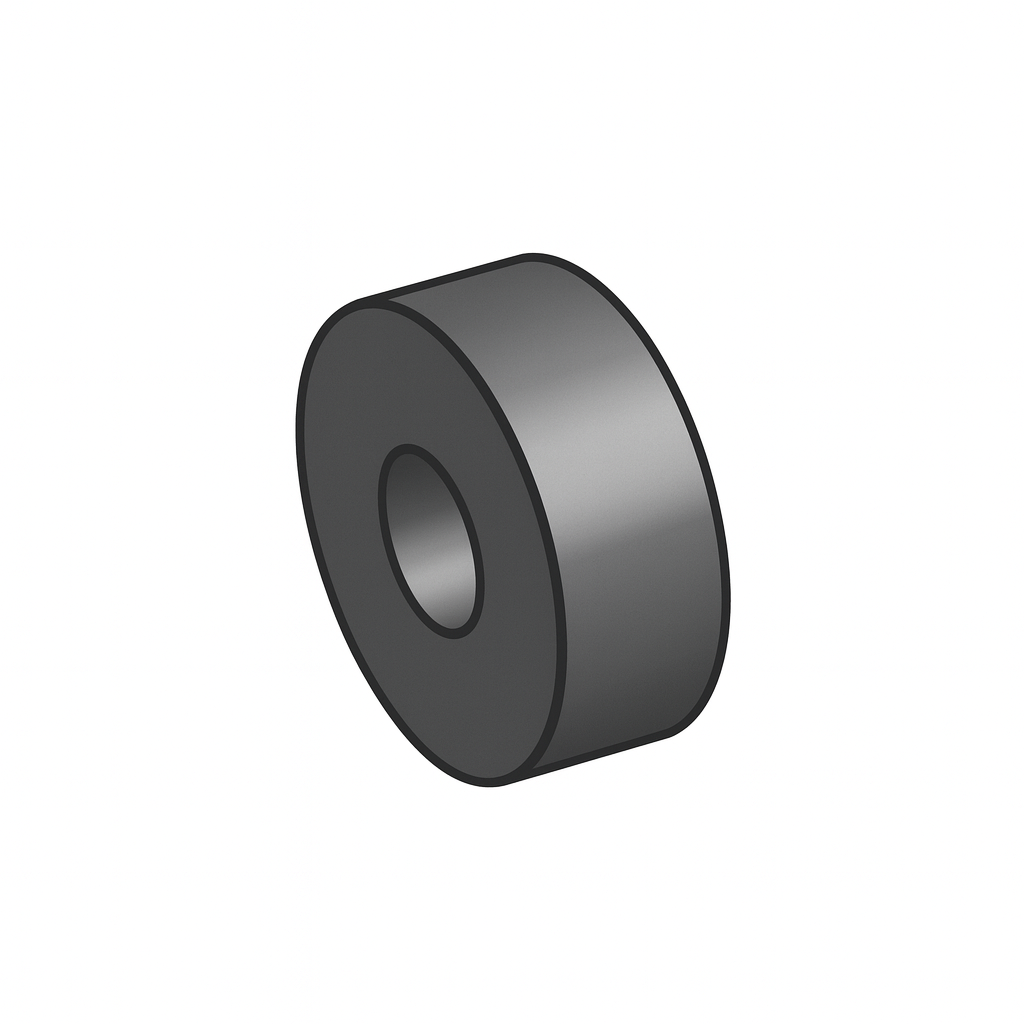

23 - Ball Bearing 608 ZZ
23 - Ball Bearing 608 ZZ
Part number:258-31080

£13.06

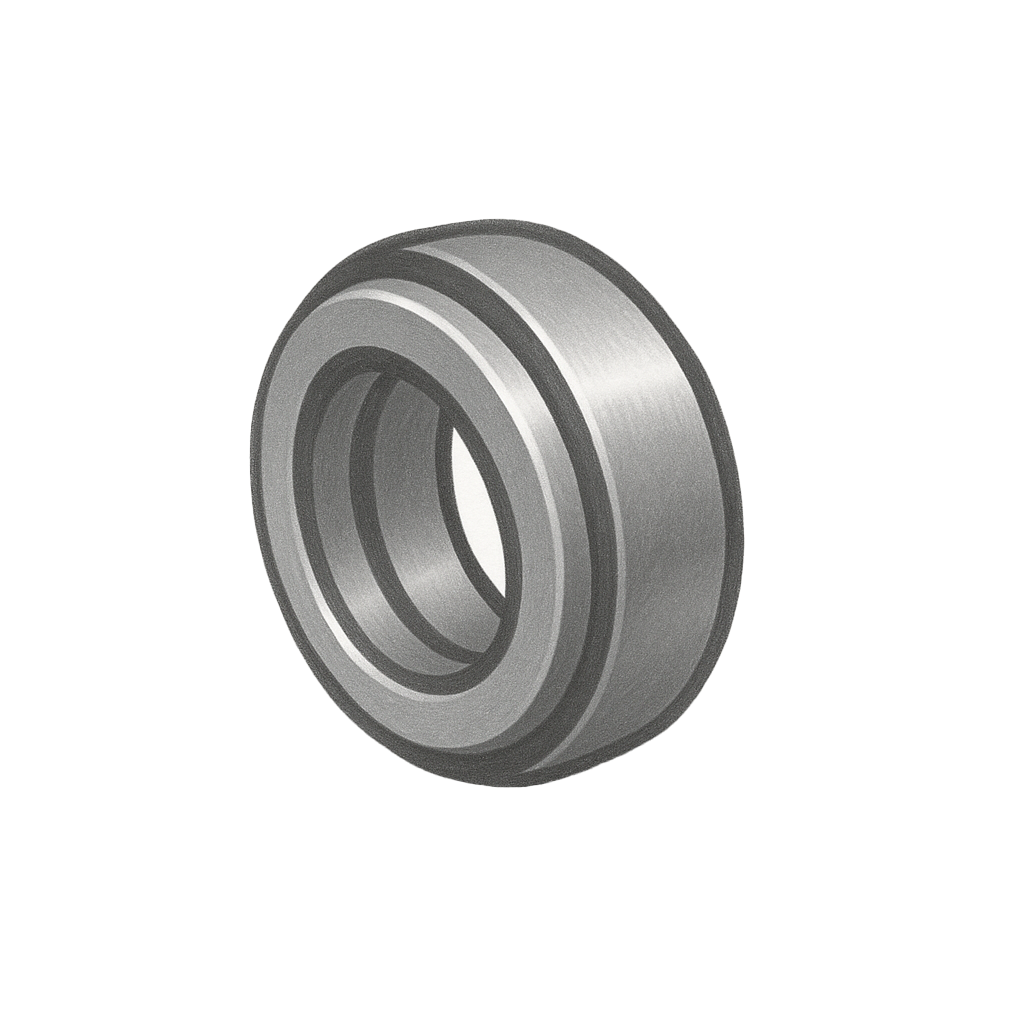

24 - Bearing Spacer
24 - Bearing Spacer
Part number:258-40840

£3.20

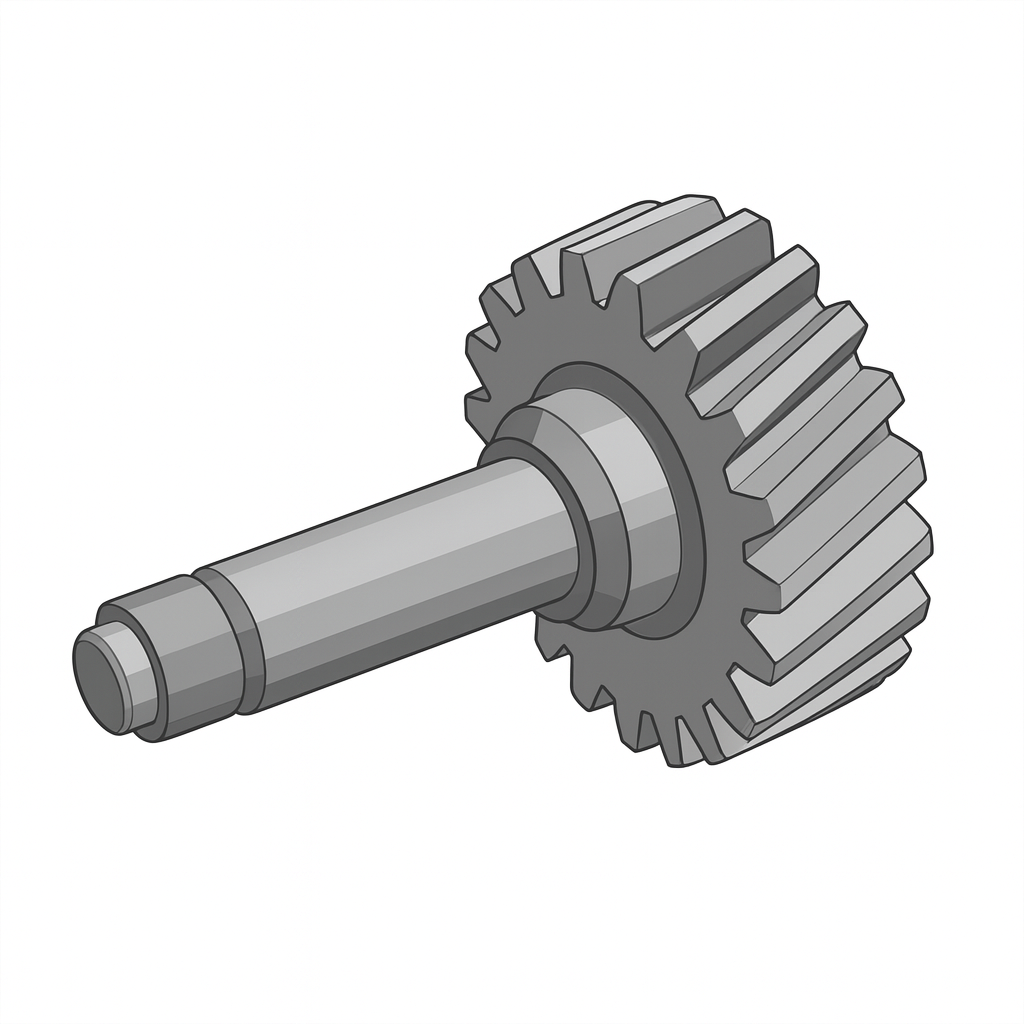

25 - Gearshaft 21 Teeth
25 - Gearshaft 21 Teeth
Part number:258-40430

£26.04

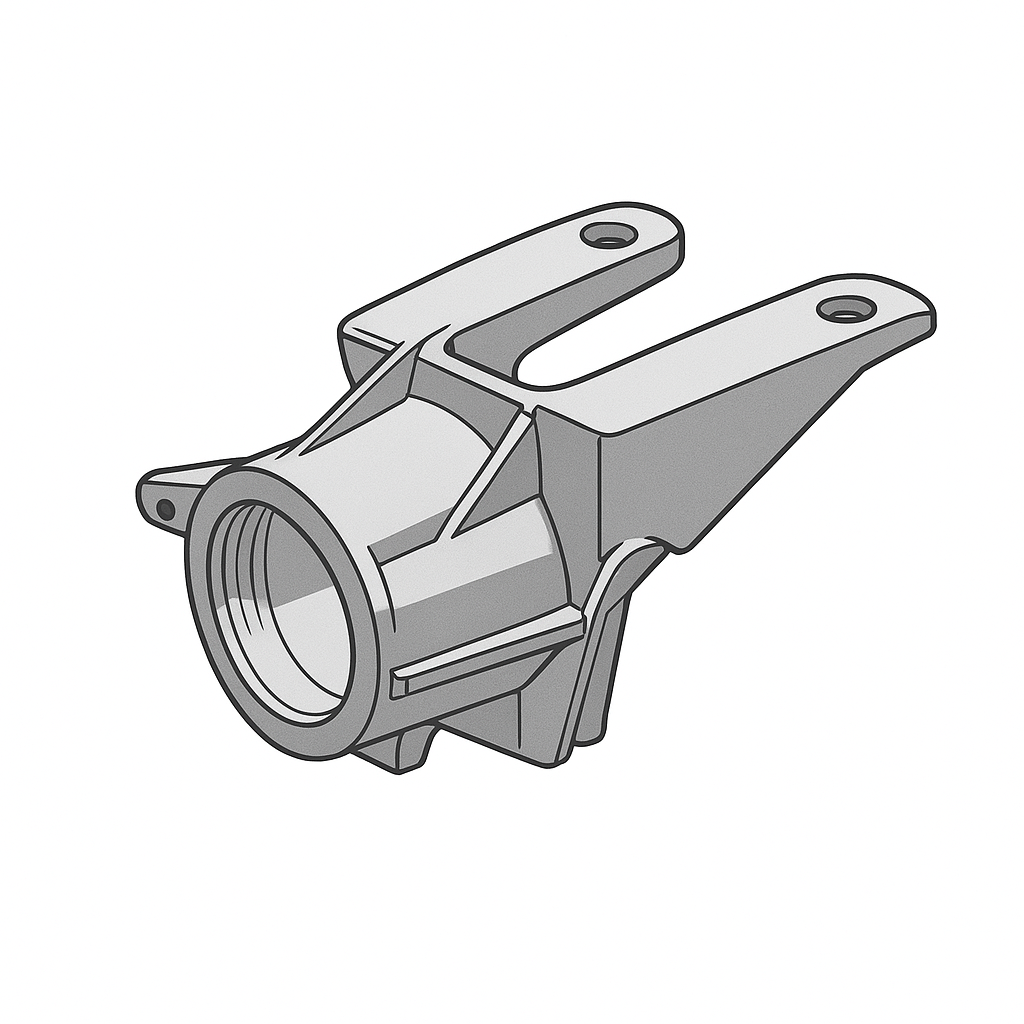

26 - Bearing Carrier
26 - Bearing Carrier
Part number:258-40830

£21.29

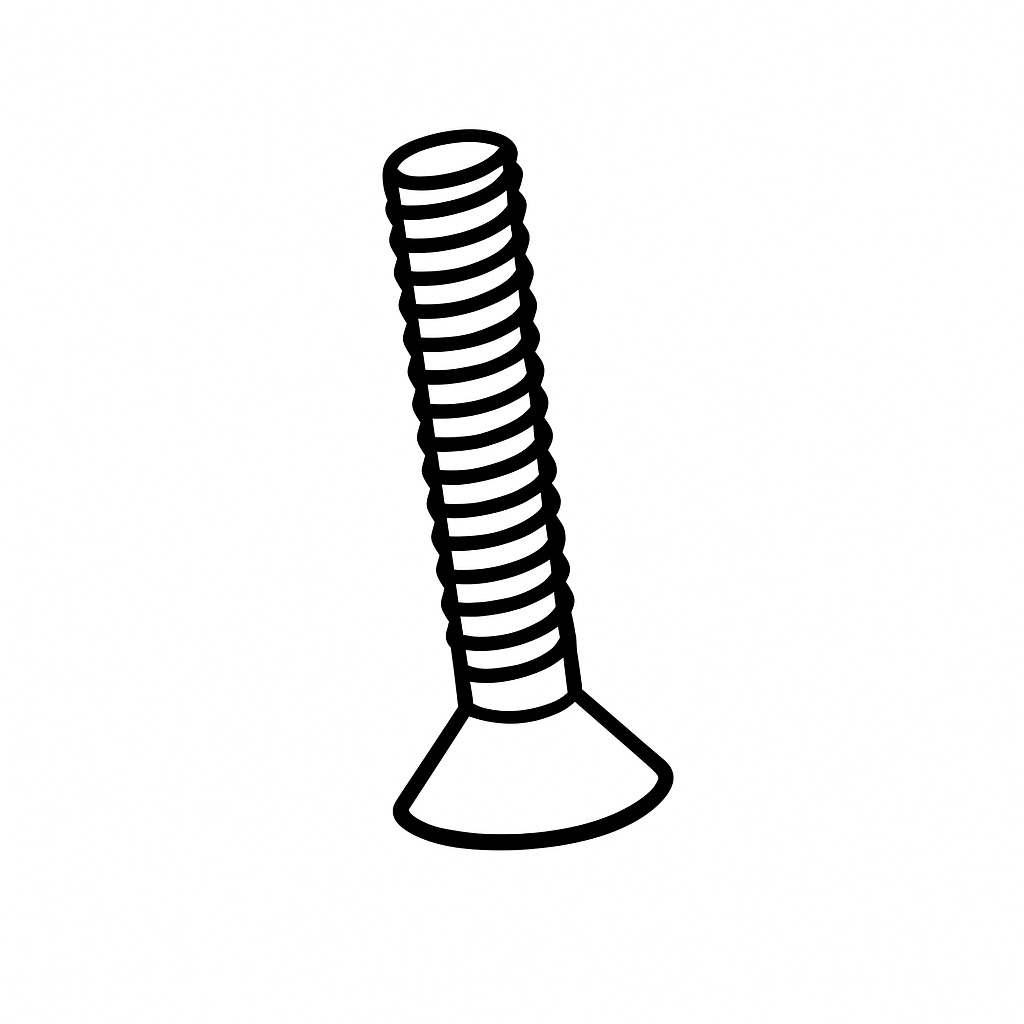

27 - Screw DIA 3 x 14mm Black
27 - Screw DIA 3 x 14mm Black
Part number:258-40820

£1.29

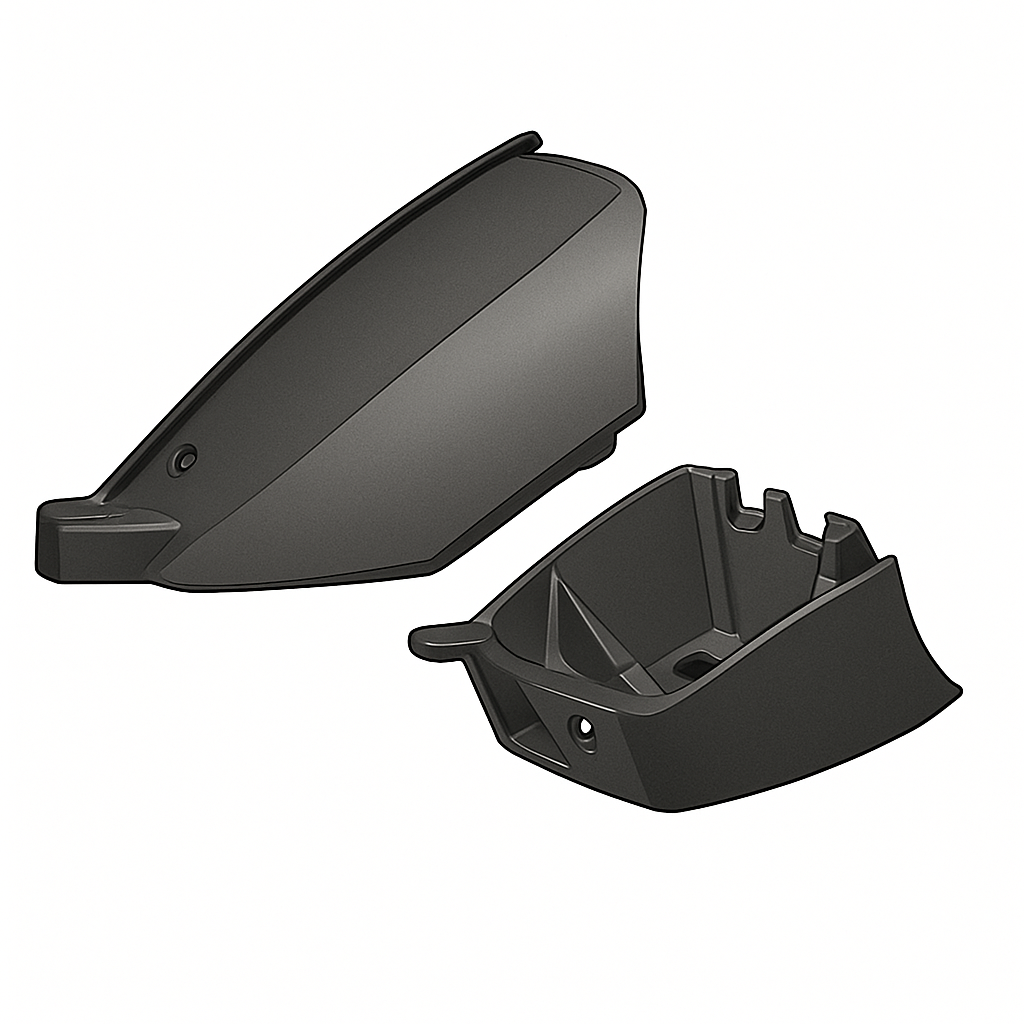

28 - Top & Bottom Cover (Printed)
28 - Top & Bottom Cover (Printed)
Part number:258-40811

£39.89

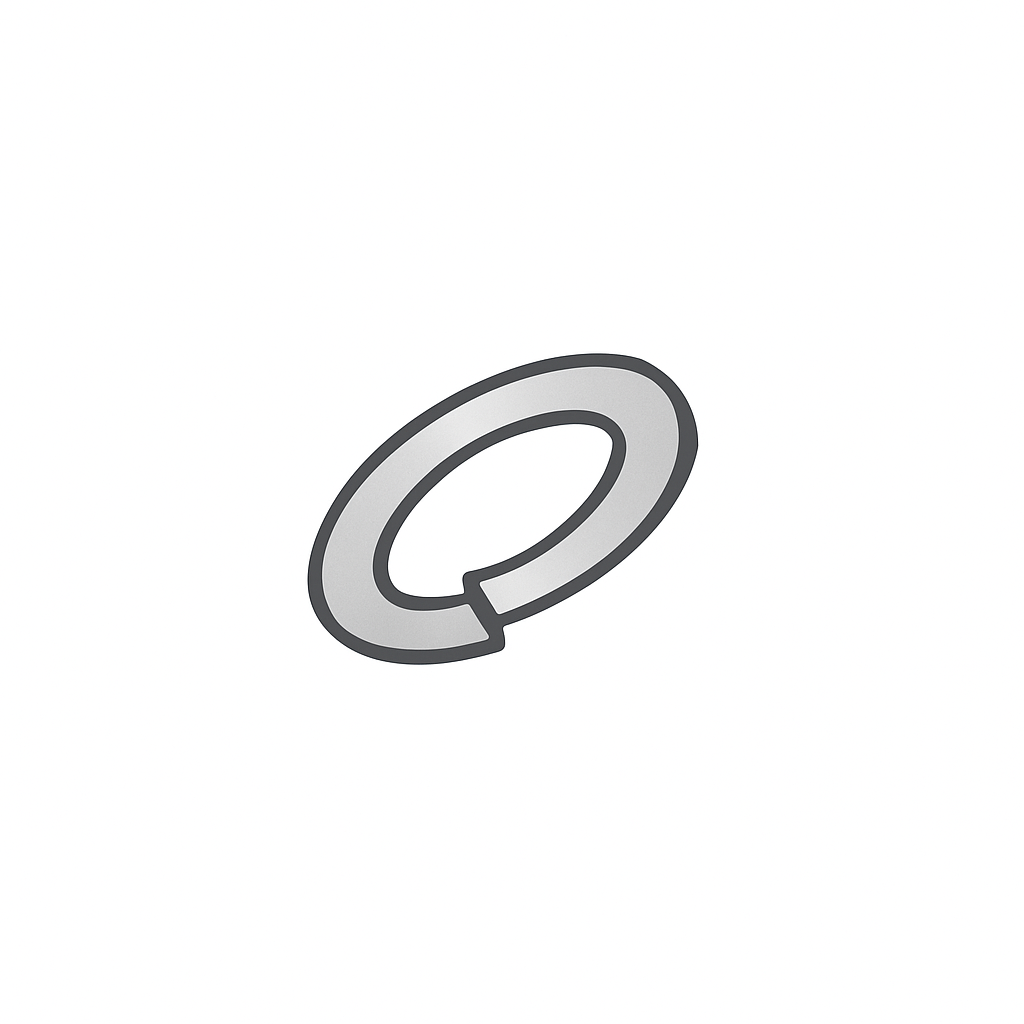

29 - Spring Washer M4 Zinc Plated
29 - Spring Washer M4 Zinc Plated
Part number:258-11740

£0.48

30 - Screw M4 x 35mm Recessed Pan Head

£1.29
