Lister Fusion Shearer Spare Parts

Shearing Equipment|Spares|Handheld Spares|Lister Fusion Shearer Spare Parts
Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

IMPORTANT: So as not to void your warranty, we recommend the motors and the PCB should be replaced together.

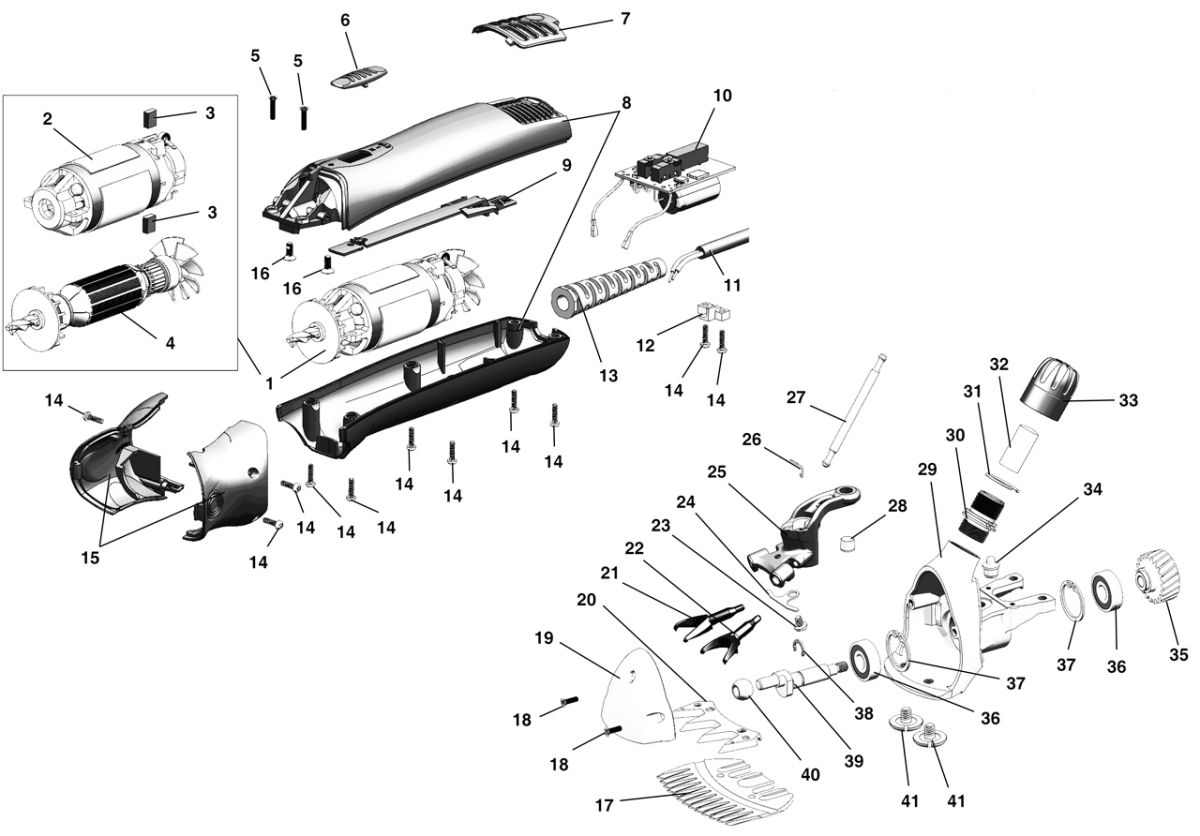

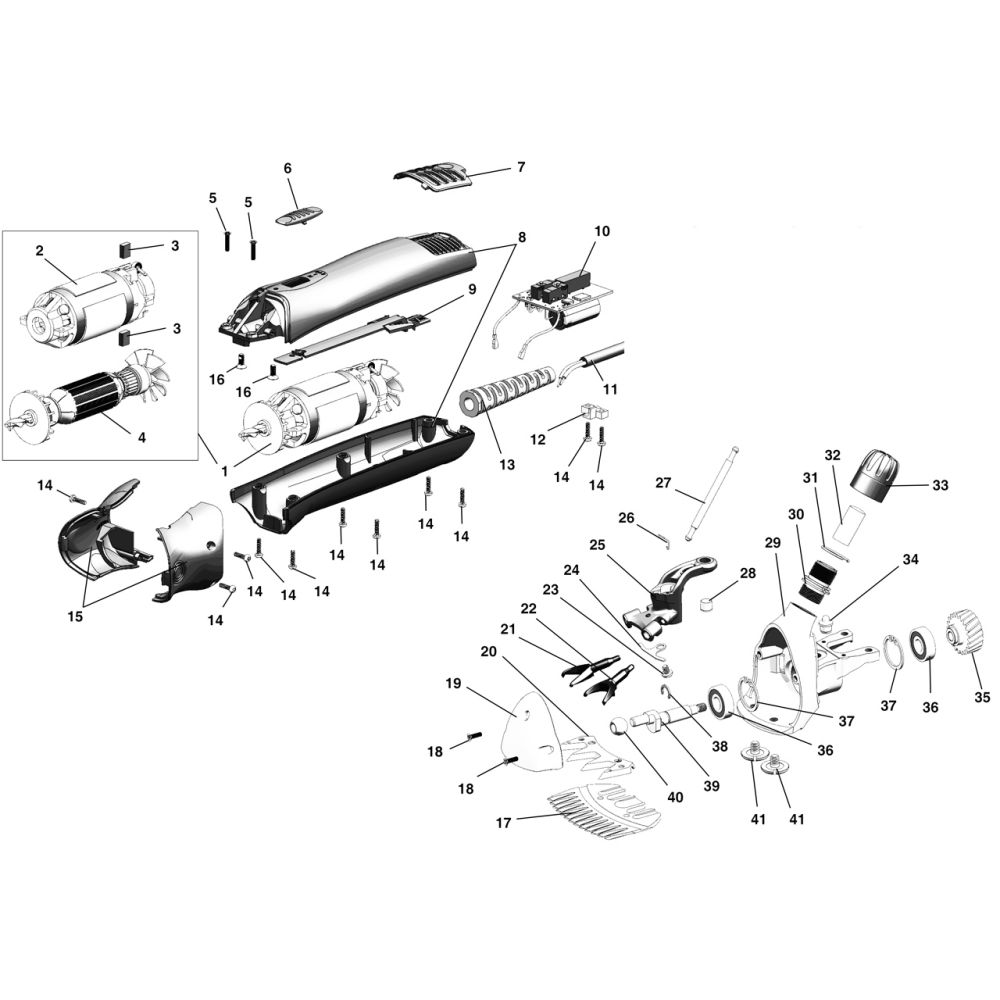

Lister Fusion Shearer

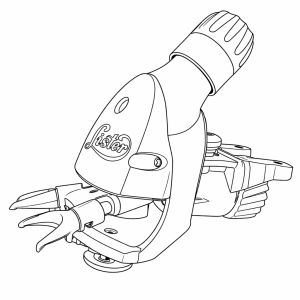

Spare Shear Head
Spare Shear Head
Part number:258-40400

£131.39

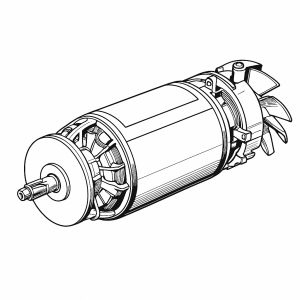

1 - Complete Motor 220-240V
1 - Complete Motor 220-240V
It is recommended to replace the motor and PCB together
Part number:258-40550 formally known as 258-40230

£72.75

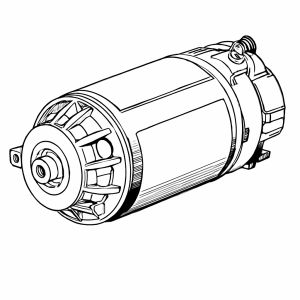

2 - Stator Assembly
2 - Stator Assembly
Lister only supply this item as a Complete Motor. Please see item 1.
Part number:258-40520

£21.87

3 - Motor Brush
3 - Motor Brush
Part number:258-40530

£3.51

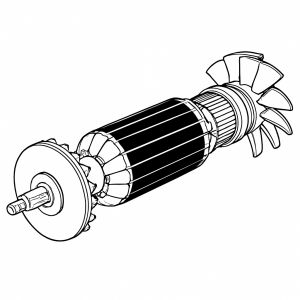

4 - Rotor Assembly Spare (220-240V)
4 - Rotor Assembly Spare (220-240V)
Lister only supply this item as a Complete Motor. Please see item 1.
Part number:258-40500

£43.62

5 - Screw M3 x 12 CSK (Pozi Locking)
5 - Screw M3 x 12 CSK (Pozi Locking)
Part number:258-40310

£0.95

6 - Switch Button (Black)
6 - Switch Button (Black)
Part number:258-40120

£3.10

7 - Filter (Black)
7 - Filter (Black)
Part number:258-40110

£4.32

8a - Red Handle
8a - Red Handle
Part number:258-40101

£13.15

8b - Blue Handle
8b - Blue Handle
Part number:258-40102

£13.15

9 - Switch Lever 2 Speed
9 - Switch Lever 2 Speed
Part number:258-40130

£2.89

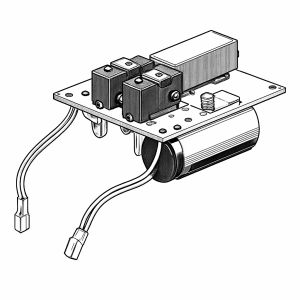

10 - PCB 220-240V 2 Speed
10 - PCB 220-240V 2 Speed
It is recommended to replace the motor and PCB together
Part number:258-40140

£56.36

11a - Replacement Cable UK

£12.00

11b - Replacement Cable (EU)

£12.00

12 - Cable Clamp Bridge
12 - Cable Clamp Bridge
Part number:258-33590

£1.77

13 - Grommet
13 - Grommet
Part number:258-37070

£2.75

14 - Lower Case Screw M3 x 12
14 - Lower Case Screw M3 x 12
Part number:258-33670

£0.98

15 - Gearbox Pair
15 - Gearbox Pair
Part number:258-40330

£4.47

16 - Screw M4 x 12 CSK Pozi Locking
16 - Screw M4 x 12 CSK Pozi Locking
Part number:258-40320

£0.98

18 - Screw M3 x 10 CSK Pozi Locking
18 - Screw M3 x 10 CSK Pozi Locking
Part number:258-40390

£0.95

19 - Shear Head Cover
19 - Shear Head Cover
Part number:258-40301

£10.67

21 - Wide Prong RH
21 - Wide Prong RH
Part number:249-18021

£18.00

22 - Wide Prong (LH)
22 - Wide Prong (LH)
Part number:249-18031

£18.00

23 - Screw M4 x 6 Slotted Pan Head

£0.62

24 - Wide Prong Retainer
24 - Wide Prong Retainer
Part number:249-10220

£2.28

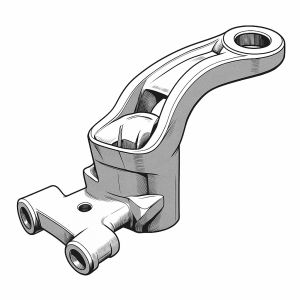

25 - Fork Machining
25 - Fork Machining
Part number:258-40250

£49.98

26 - Tension Pin Retainer
26 - Tension Pin Retainer
Part number:258-32340

£3.23

27 - Tension Pin
27 - Tension Pin
Part number:258-32310

£12.03

28 - Fulcrum Cup
28 - Fulcrum Cup
Part number:258-40340

£7.12

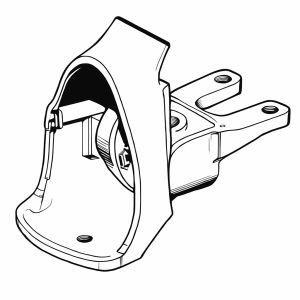

29 - Shear Head Machining
29 - Shear Head Machining
Part number:258-40240

£40.77

30 - Lid Bush
30 - Lid Bush
Part number:249-15030

£14.57

31 - Tension Lock Ring

£2.67

32 - Sliding Sleeve
32 - Sliding Sleeve
Part number:249-00010

£8.00

33 - Tension Nut
33 - Tension Nut
Part number:258-40360

£23.67

34 - Fulcrum Post
34 - Fulcrum Post
Part number:258-32320

£7.45

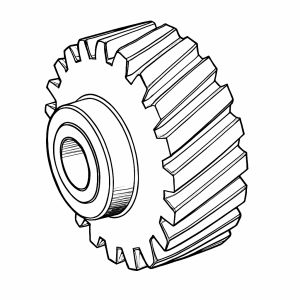

35 -Gear Wheel 21 Teeth
35 -Gear Wheel 21 Teeth
Part number:258-40290

£18.63

36 - 609 RS Bearing
36 - 609 RS Bearing
Part number:249-18160

£8.40

37 - Internal Circlip for Ø24 Bore
37 - Internal Circlip for Ø24 Bore
Part number:258-40260

£0.89

38 - Ext. Crescent Ring for Internal Circlip for Ø9

£0.89

39 - Shear Crankshaft
39 - Shear Crankshaft
Part number:258-40270

£26.49

40 - Crank Roller
40 - Crank Roller
Part number:157-00151

£9.15

41 - Dual Slot Comb Screw

£4.00
