Lister Nexus Spares

Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.
Lister Nexus Spares
Click on the image to enlarge

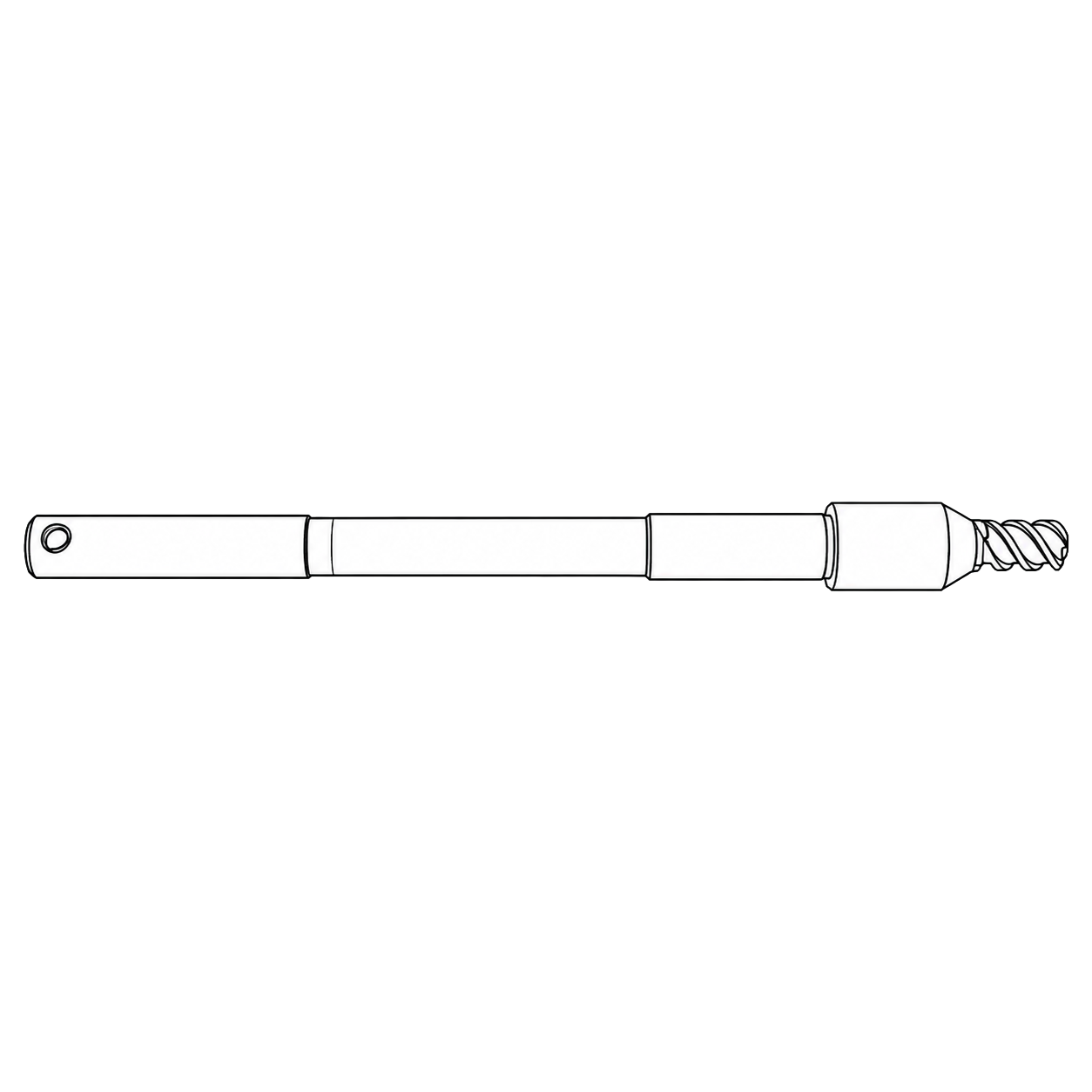

Spline Driving Spindle
Spline Driving Spindle
Converts old type Lister Nexus machines into Nexus QR
Part number:289-18900

£30.00

1 - Screw M8 x 25mm
1 - Screw M8 x 25mm
Part number:289-17740

£0.66

2 - Washer
2 - Washer
Part number:027-03929

£1.28

3 - Top Cover
3 - Top Cover
Part number:289-00043

£40.69

4 - Poly V-Belt
4 - Poly V-Belt
Part number:289-13720

£8.50

5 - Grubscrew (W-cup point)
5 - Grubscrew (W-cup point)
Part number:289-14360

£0.59

6 - Driving Pulley
6 - Driving Pulley
Part number:289-17600

£38.07

7 - Driven Pulley
7 - Driven Pulley
Part number:289-17610

£28.08

8 - Grubscrew (dog point)
8 - Grubscrew (dog point)
Part number:289-14370

£0.60

9 - Top Plate Stud
9 - Top Plate Stud
Part number:289-17560

£4.29

10 - Screw M6x16mm
10 - Screw M6x16mm
Part number:289-17710

£0.44

11 - Top Plate
11 - Top Plate
Part number:289-17550

£41.70

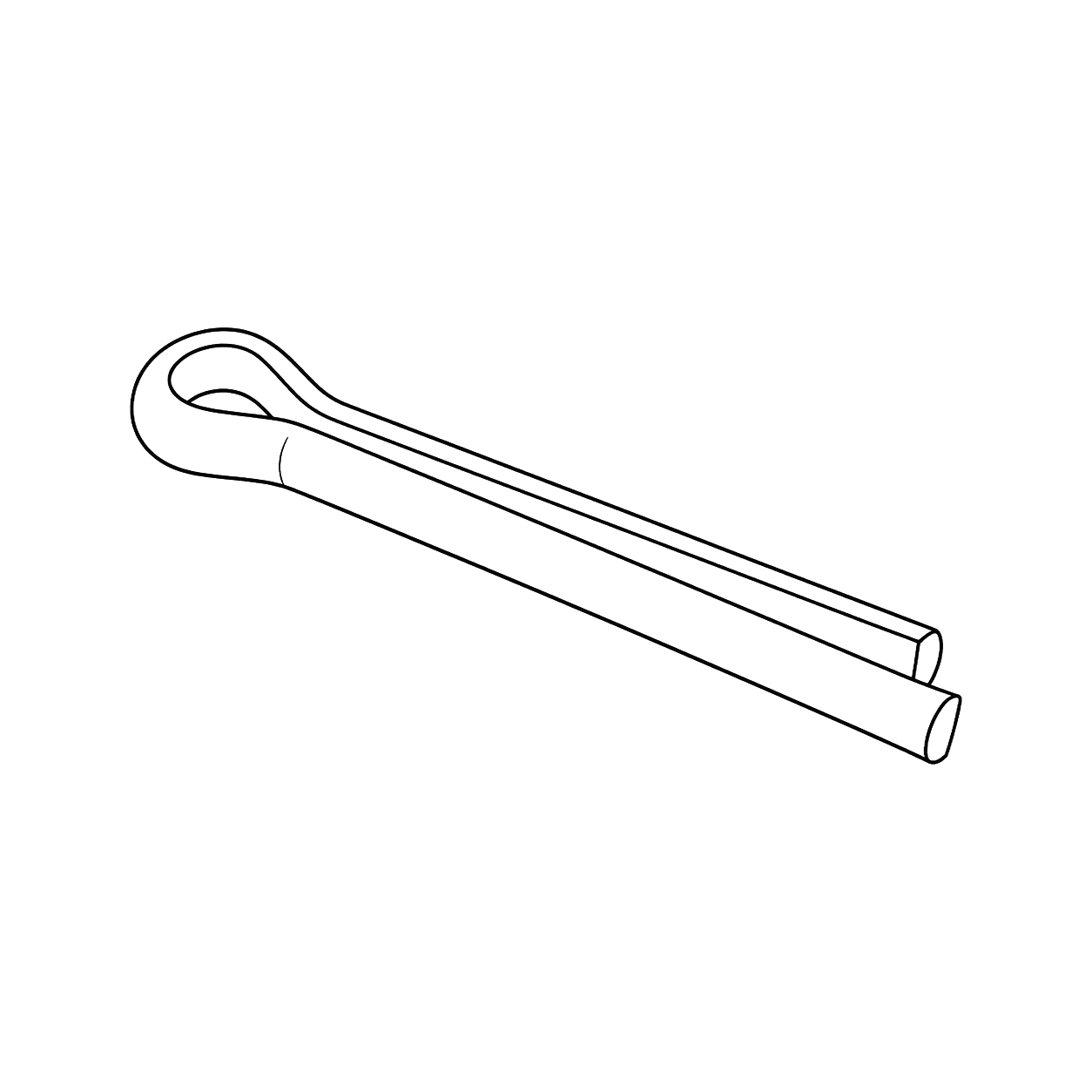

12 - Split Pin
12 - Split Pin
Part number:027-00123

£1.28

13 - Spring Abutment
13 - Spring Abutment
Part number:289-10842

£7.94

14 - Split Pin
14 - Split Pin
Part number:027-00122

£1.28

15 - Tension Bar
15 - Tension Bar
Part number:289-17570

£5.88

16 - Tension Bar Spring
16 - Tension Bar Spring
Part number:289-17580

£3.84

17 - Casing
17 - Casing
Part number:289-17650

£39.16

18 - Disc Spring
18 - Disc Spring
Part number:289-17540

£0.60

19 - Screw M5 x 10mm
19 - Screw M5 x 10mm
Part number:289-17090

£0.75

20 - Spring
20 - Spring
Part number:289-11601

£2.73

21 - Drive Pin
21 - Drive Pin
Part number:154-00034

£2.50

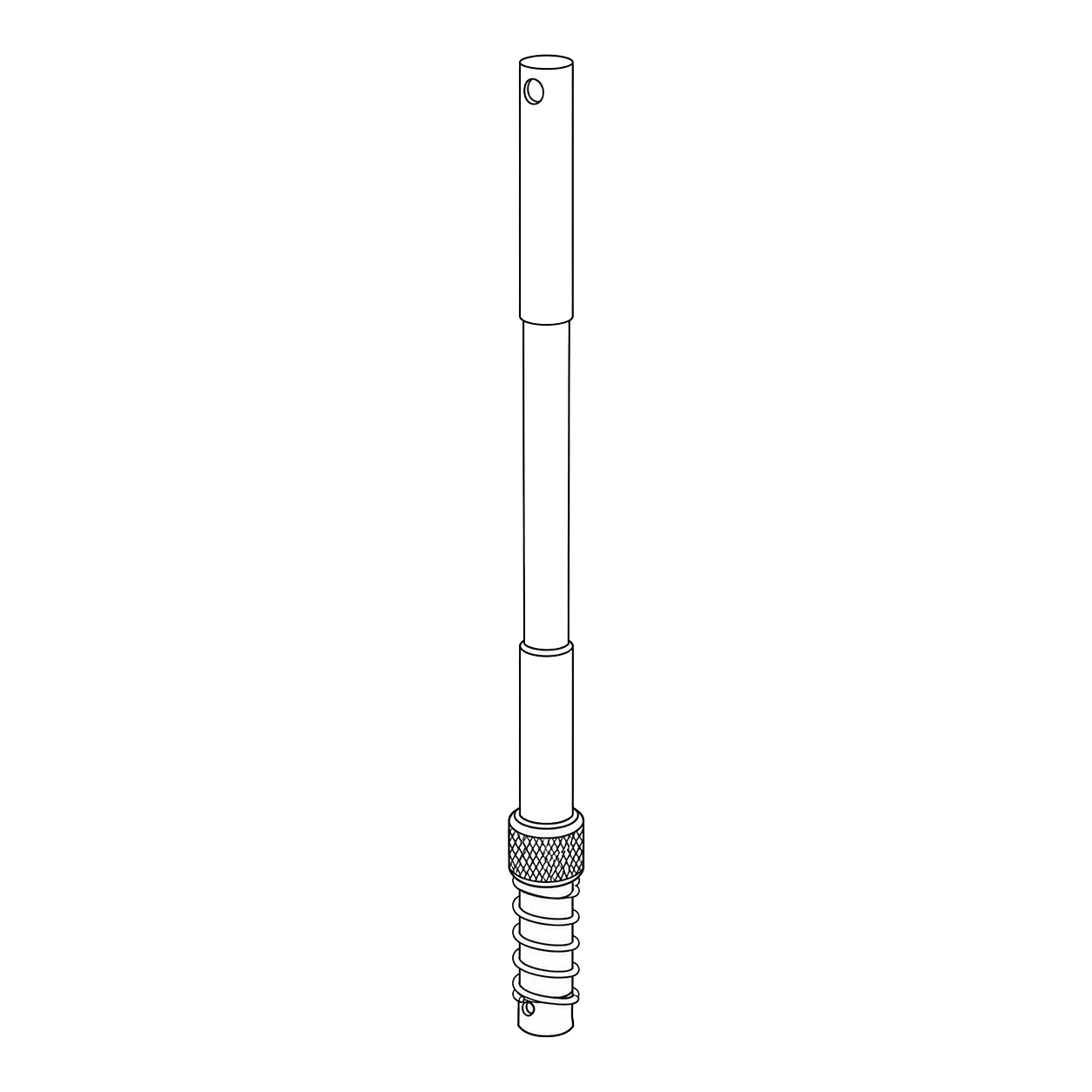

22 - Spindle Assembly
22 - Spindle Assembly
(includes item 20 & 21)
Part number:289-14400

£26.96

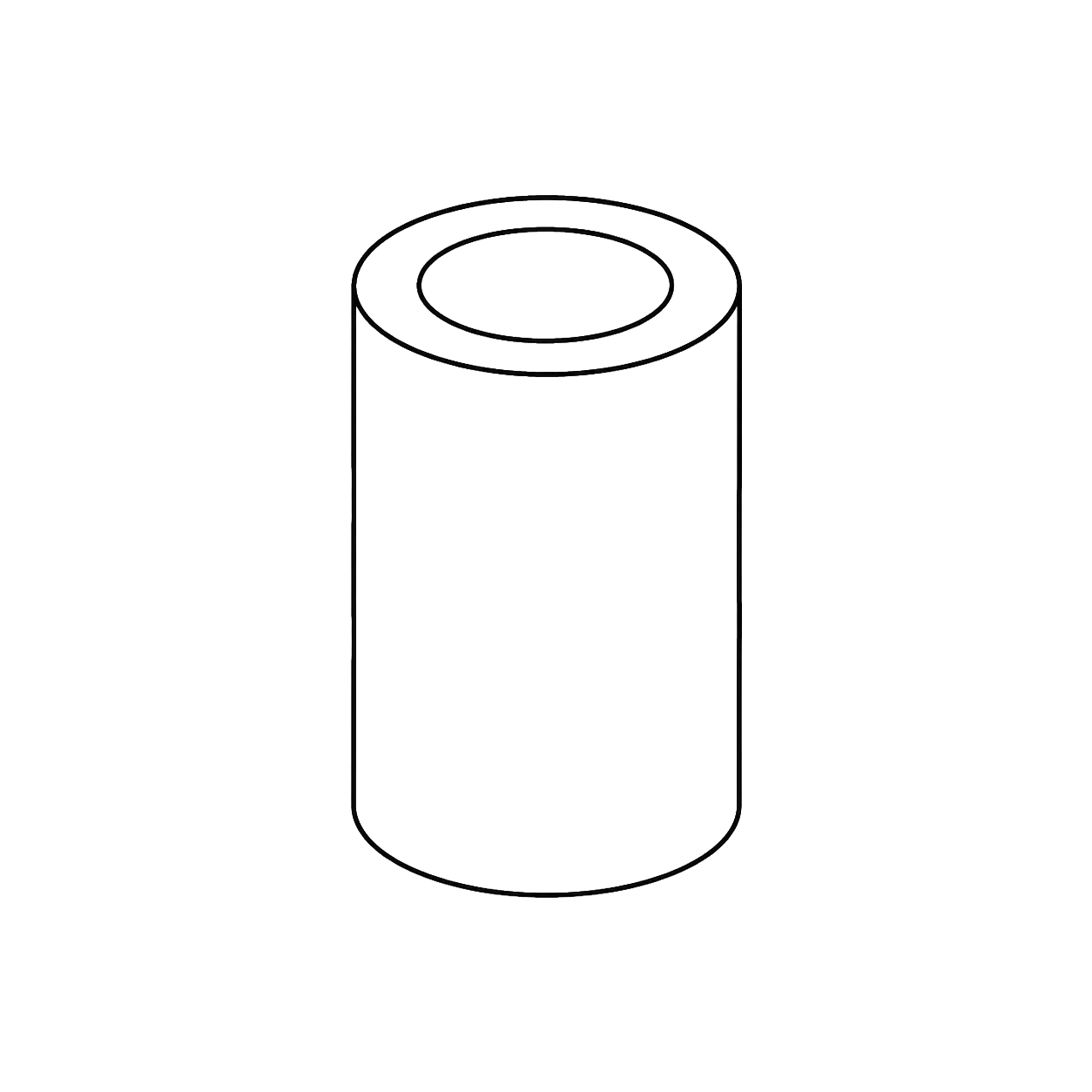

23 - Oilite Bush
23 - Oilite Bush
Part number:289-00011

£4.00

24 - Ball Bearing

£10.20

25 - Spindle Bearing Assembly
25 - Spindle Bearing Assembly
(Includes item 23 & 24)
Part number:289-10091

£44.17

26 - Motor Blanking Plug
26 - Motor Blanking Plug
Part number:289-17300

POA

27a - Motor & Capacitor 240V
27a - Motor & Capacitor 240V
250W Motor and Capacitor 240V 50Hz
Part number:289-17020

£195.00

27b - Motor & Capacitor 240V
27b - Motor & Capacitor 240V
700W Motor and Capacitor 240V 50Hz
Part number:289-18840

£225.00

28 - Capacitor to Switch Lead
28 - Capacitor to Switch Lead
Part number:289-17620

£0.71

29 - Mains Lead UK
29 - Mains Lead UK
Part number:289-14820.UK

£12.00

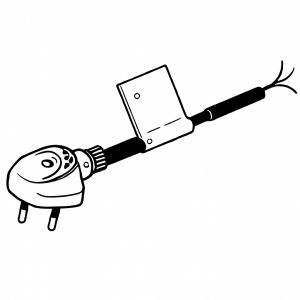

29a - Mains Lead EU
29a - Mains Lead EU
Part number:289-14820.EU

£12.00

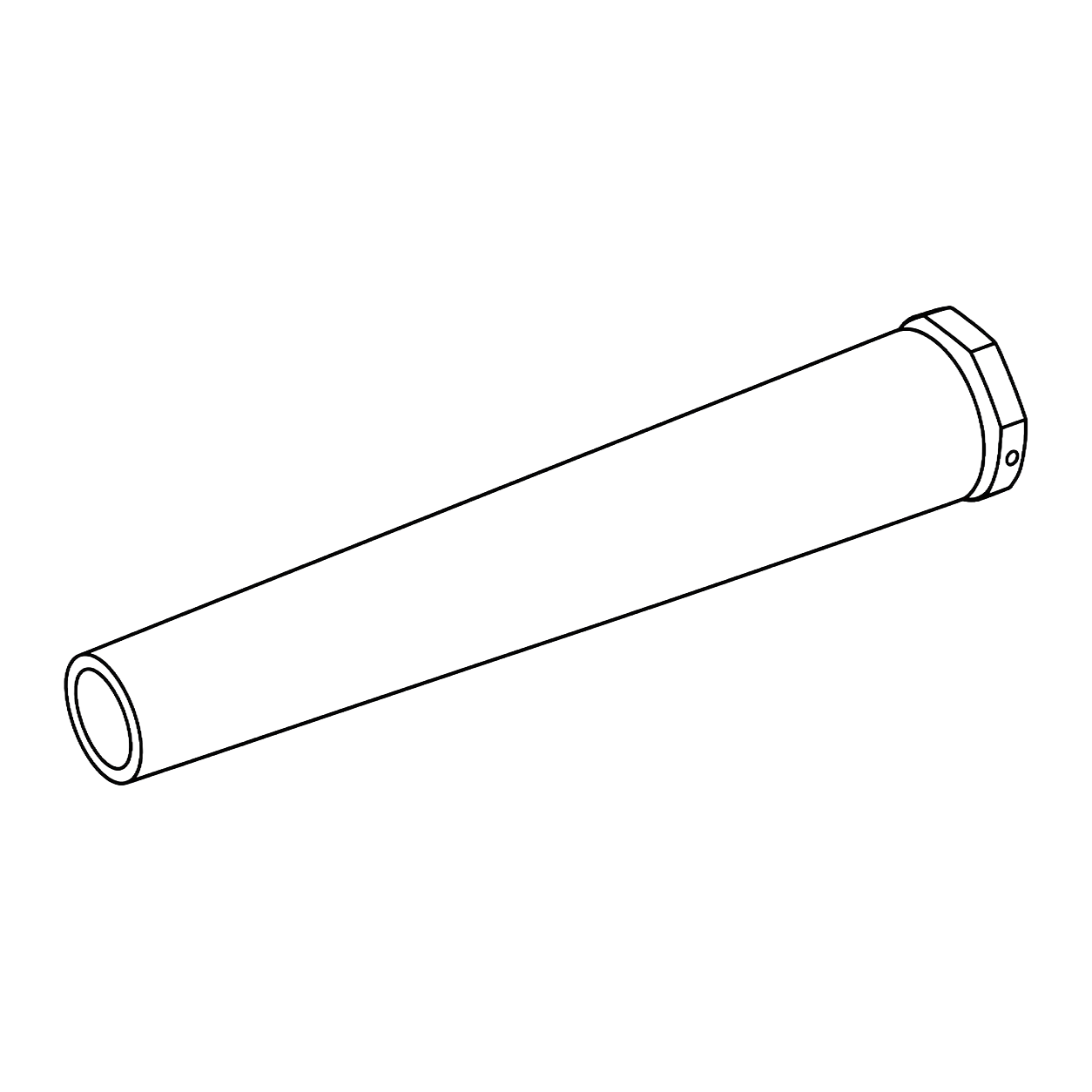

30 - Grommet
30 - Grommet
Part number:258-37070

£2.15

31 - Screw No.4 x 16mm
31 - Screw No.4 x 16mm
Part number:289-14260

£0.47

32 - Cable Clamp
32 - Cable Clamp
Part number:289-14250

£2.78

33 - Screw No.4 x 9.5mm
33 - Screw No.4 x 9.5mm
Part number:289-14270

£0.47

34 - Switch Assembly
34 - Switch Assembly
Part number:289-14580

£25.30

35 - Ratchet Wheel (each)
35 - Ratchet Wheel (each)
Part number:289-15020

£2.55

36 - Ratchet Spring
36 - Ratchet Spring
Part number:289-15040

£1.25

37 - Ratchet Shaft
37 - Ratchet Shaft
Part number:289-15030

£16.46

38 - Ratchet Housing
38 - Ratchet Housing
Part number:289-15050

£17.88

39 - Grubscrew M5 x 10mm (Cone Point)

£0.66

40 - Return Spring
40 - Return Spring
Part number:289-15080

£2.12

41 - Grubscrew M5 x 6mm (Cone Point)
41 - Grubscrew M5 x 6mm (Cone Point)
Part number:289-15990

£0.83

42 - Grubscrew M5 x 8mm
42 - Grubscrew M5 x 8mm
Part number:289-15980

£0.83

43 - Switch Lever
43 - Switch Lever
Part number:289-15060

£8.60

44 - Pull Rope (Black)
44 - Pull Rope (Black)
Part number:289-17920

£8.00

45 - Spring Clip for Spindle Housing
45 - Spring Clip for Spindle Housing
Part number:289-17940

£3.00

Switch Lever Assembly
Switch Lever Assembly
Includes items 37-43.
Part number:289-15250

£47.76
