Heiniger 12V Cattle Clipper Spares

Shearing Equipment|Spares|Handheld Spares|Heiniger 12V Cattle Clipper Spares

Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

For any items that require a 'Special Order', please ring our friendly team who will be able to provide you with a price and also an estimated delivery time.

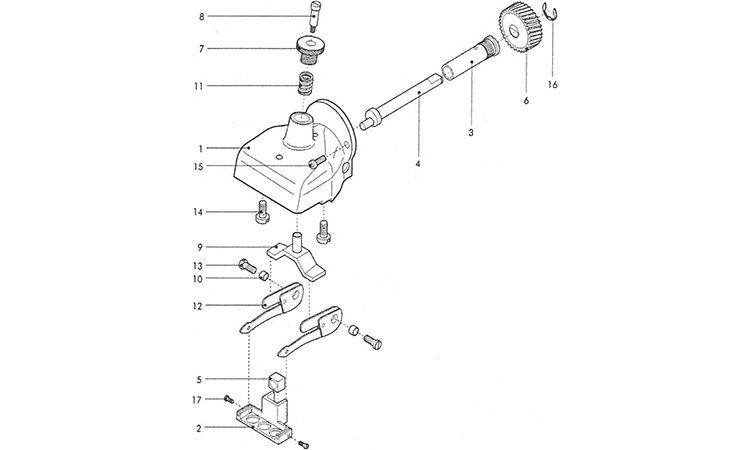

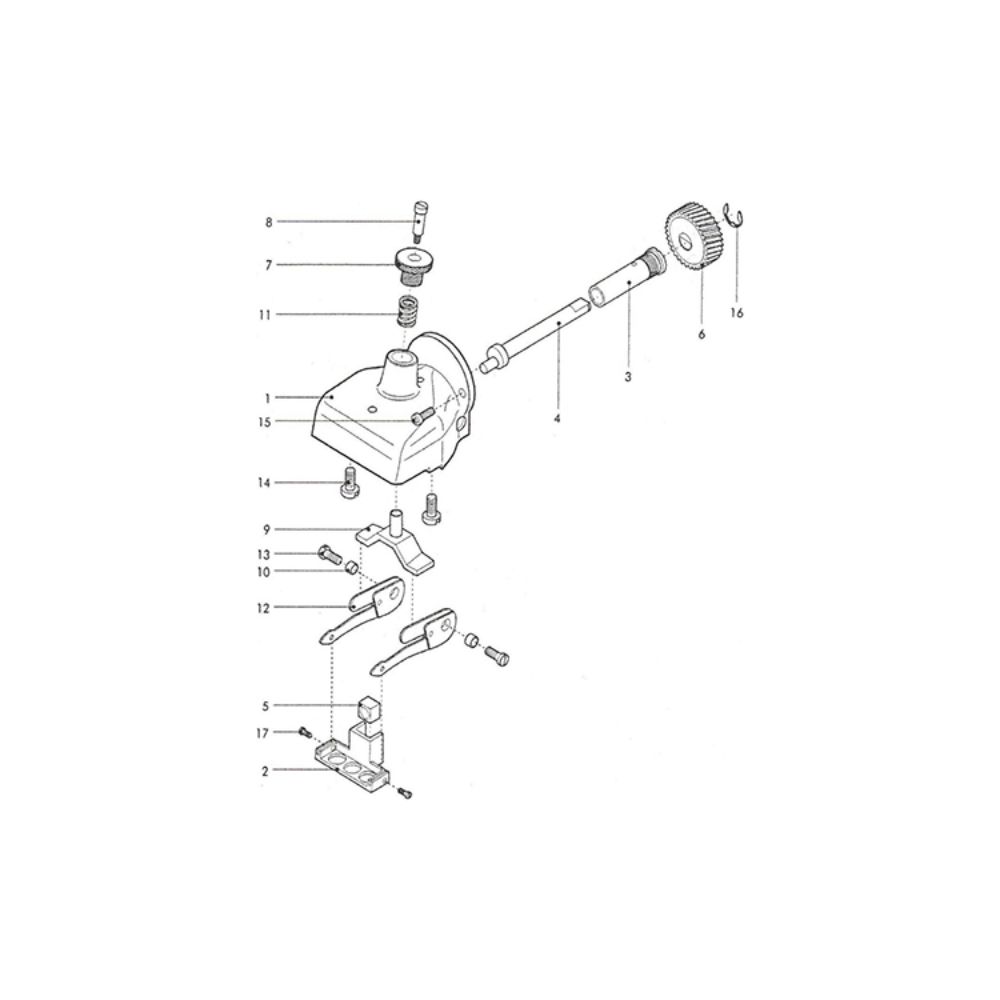

Heiniger 12V Cattle Clipper Head

1 - Head Casing

1 - Head Casing

Part number:706-501

£43.84

2 - Cutter Driving Carrier

2 - Cutter Driving Carrier

Part number:706-503

£26.36

3 - Crank Spindle Sleeve

3 - Crank Spindle Sleeve

Part number:706-505

£15.31

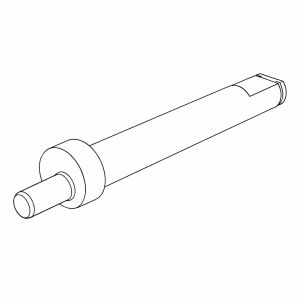

4 - Crank Spindle

4 - Crank Spindle

Part number:706-506

£14.94

5 - Crank Drive Block

5 - Crank Drive Block

Part number:706-507

£4.47

6 - Gear - 30 tooth

6 - Gear - 30 tooth

Part number:717-711

£12.80

7 - Tension Screw

7 - Tension Screw

Part number:706-509

£8.45

8 - Distance Screw

8 - Distance Screw

Part number:706-510

£3.22

9 - Pressure Plate

9 - Pressure Plate

Part number:706-511

£2.58

10 - Centering Ring

10 - Centering Ring

Part number:706-514

£1.31

11 - Spiral Ring

11 - Spiral Ring

Part number:706-517

£0.86

12 - Laminated Spring Riveted

12 - Laminated Spring Riveted

Part number:706-518

£7.37

13 - P.H Screw M5 x 14

13 - P.H Screw M5 x 14

Part number:706-520

£0.14

14 - P.H Screw M6 x 16

14 - P.H Screw M6 x 16

Part number:706-521

£0.78

15 - P.H Screw M4 x 10

15 - P.H Screw M4 x 10

Part number:706-523

£0.57

16 - Circlip Benzing 6

16 - Circlip Benzing 6

Part number:706-524

£0.16

17 - Special Screw M3 x 6

17 - Special Screw M3 x 6

Part number:706-525

£0.65

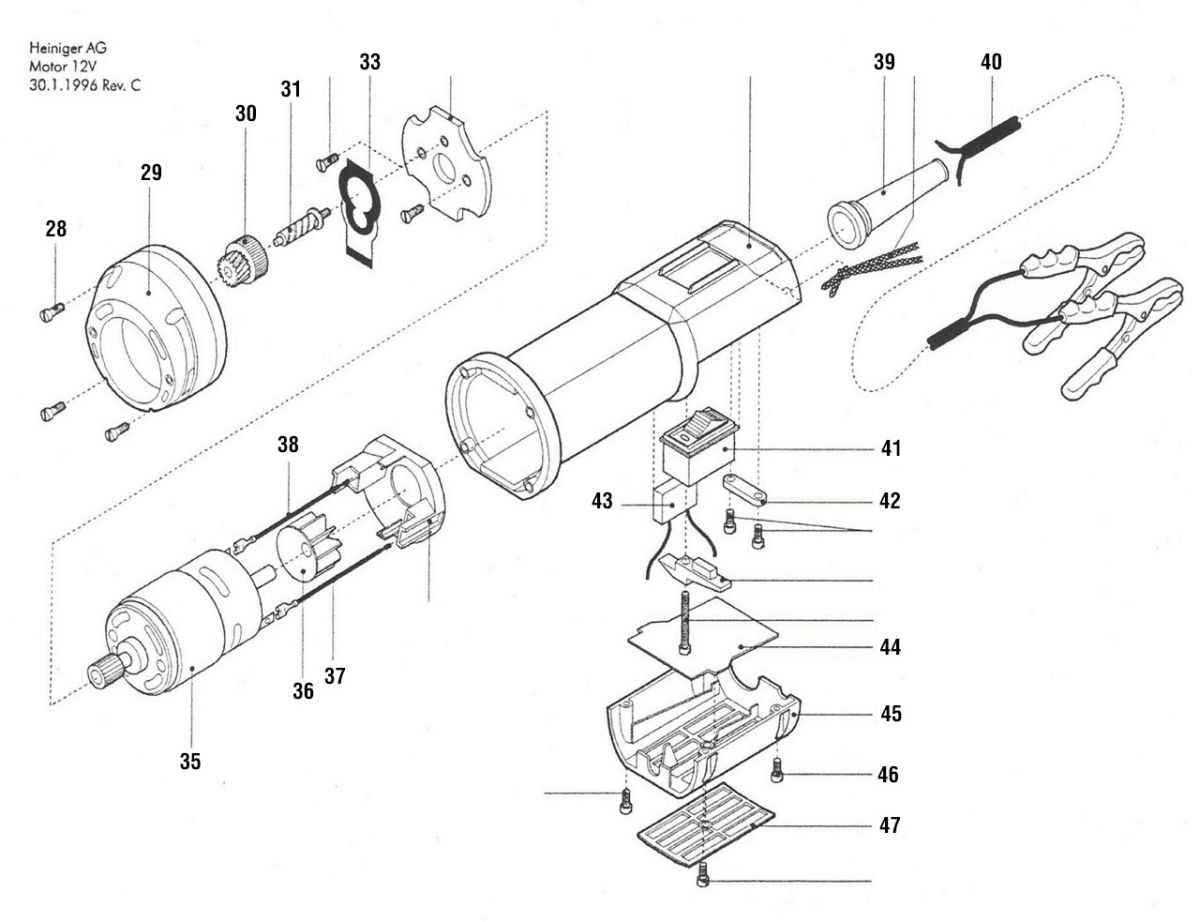

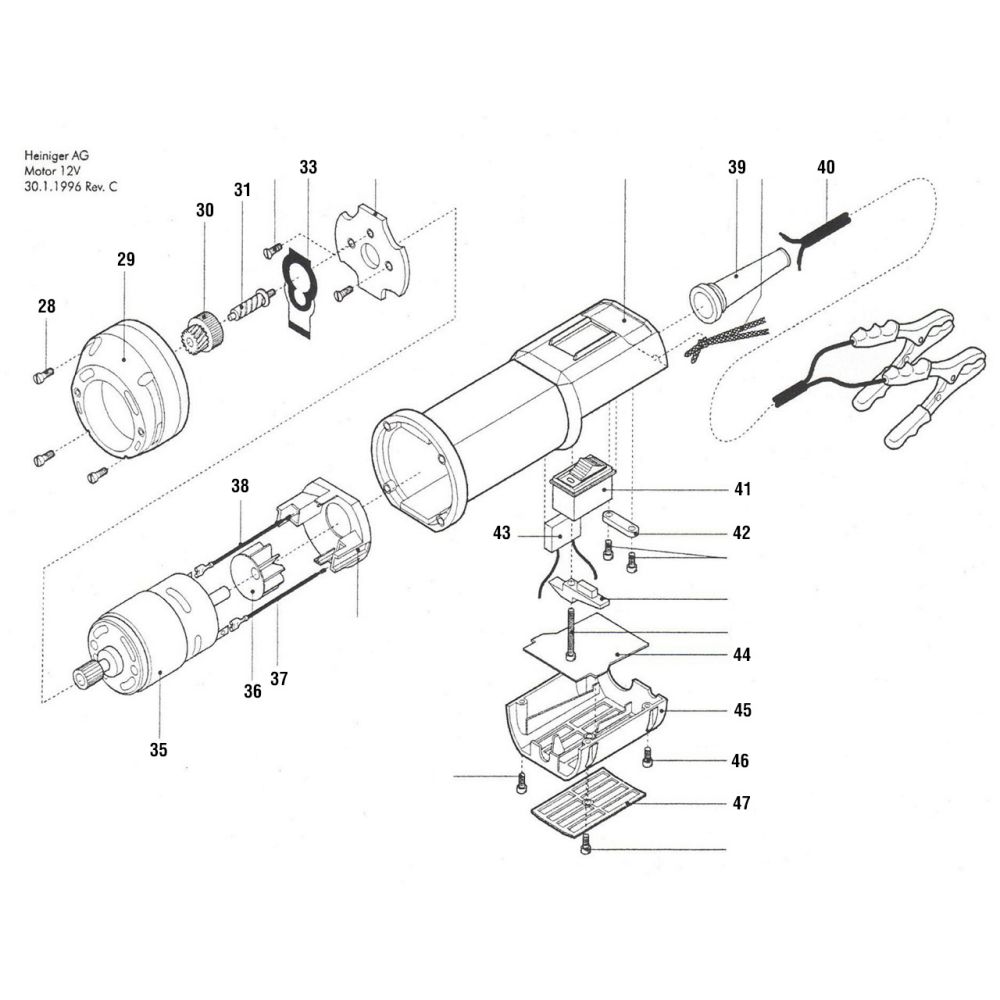

Heiniger 12V Cattle Clipper Body

28 - Z.Screw M3.5 x 8

28 - Z.Screw M3.5 x 8

Part number:701-640

£0.34

29 - Gear Box

29 - Gear Box

Part number:701-602

£12.20

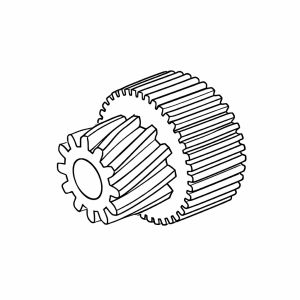

30 - Reduction Gear

30 - Reduction Gear

Part number:712-103

£29.72

31 - Spindle

31 - Spindle

Part number:701-615

£6.67

32 - Countersunk Screw M4 x 12

32 - Countersunk Screw M4 x 12

Part number:712-110

POA

33 - Seal

33 - Seal

Part number:701-612

£6.72

34 - Centering Flange 12V

34 - Centering Flange 12V

Part number:712-102

POA

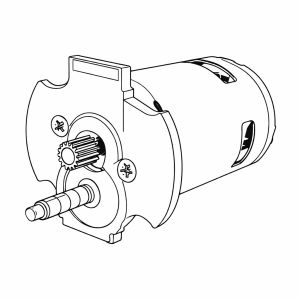

35 - 12V Motor

35 - 12V Motor

Part number:712-100-22

£47.60

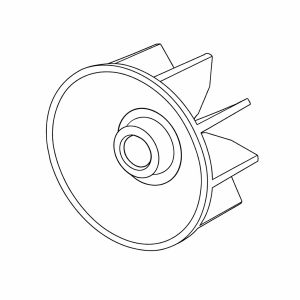

36 - Fan Wheel

36 - Fan Wheel

Part number:712-112

£3.59

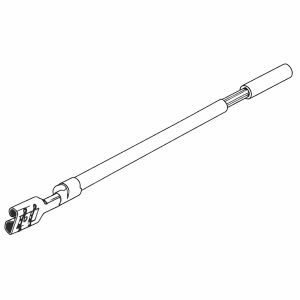

37 - Connection T-Flex with 4.8 Red

37 - Connection T-Flex with 4.8 Red

Part number:712-105

£2.85

38 - Connection T-Flex with 4.8 Blue

38 - Connection T-Flex with 4.8 Blue

Part number:712-106

£2.85

39 - Cable Sleeve

39 - Cable Sleeve

Part number:712-111

£5.01

40 - Cable Complete

40 - Cable Complete

Replacement for part 712-108

Part number:712-108

£34.00

41 - Main Switch

41 - Main Switch

Part number:701-631

£12.80

42 - Cable Grip USA/GB/12V Cord

42 - Cable Grip USA/GB/12V Cord

£1.31

43 - Capacitor 3.3UF

43 - Capacitor 3.3UF

Part number:712-100-21

£8.32

44 - Dust Cover

44 - Dust Cover

Part number:701-627

£1.89

45 - Switch Housing Lower

45 - Switch Housing Lower

Part number:701-605

£11.04

46 - Z.Screw M3 x 6

46 - Z.Screw M3 x 6

Part number:701-641

£0.24

47 - Filter Complete

47 - Filter Complete

Part number:701-600-30A

£8.32
