Heiniger Xpert / Xpert 2 Speed Spare Parts

Shearing Equipment|Spares|Handheld Spares|Heiniger Xpert / Xpert 2 Speed Spare Parts
Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.

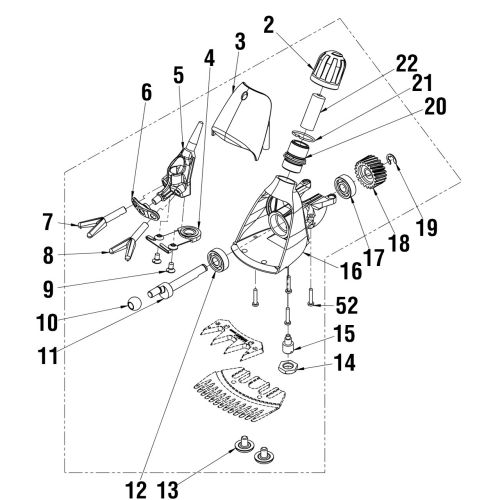

Heiniger Xpert and Xpert 2 Speed Parts
2 - Tension Nut
2 - Tension Nut
Part number:708-260

£9.25

3A - Sheep Shearing Head Cover
3A - Sheep Shearing Head Cover
Part number:708-250

£2.69

3B - Sheep Shearing Head Cover Xpert2

£3.61

4 - Retaining Spring
4 - Retaining Spring
Part number:717-709

£19.52

5 - Swivelling Fork
5 - Swivelling Fork
Part number:717-701

£57.45

6 - Gauge Plate 3
6 - Gauge Plate 3"
Part number:717-713

£14.01

7 - Chicken Feet Right
7 - Chicken Feet Right
Part number:717-707

£21.23

8 - Chicken Feet Left
8 - Chicken Feet Left
Part number:717-706

£18.23

9 - Countersunk Screw M4 x 8
9 - Countersunk Screw M4 x 8
Part number:717-727

£0.80

10 - Crank Roller
10 - Crank Roller
Part number:721-106

£6.87

11 - Crankshaft
11 - Crankshaft
Part number:708-245

£14.59

12 - Front Bearing 608 2RS
12 - Front Bearing 608 2RS
Part number:717-725

£8.40

13 - Comb Screw
13 - Comb Screw
Part number:717-720

£4.42

14 - Locknut
14 - Locknut
Part number:721-103

£3.54

15 - Centre Post
15 - Centre Post
Part number:717-719

£4.02

16 - Shear Head Case
16 - Shear Head Case
Part number:708-241

£47.12

17 - Back Bearing
17 - Back Bearing
Part number:701-636

£8.40

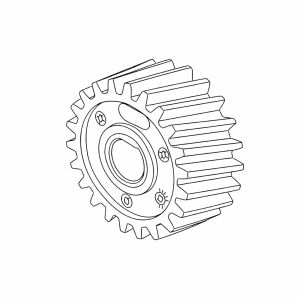

18 - Cog Wheel
18 - Cog Wheel
Part number:708-243

£6.77

19 - Circlip
19 - Circlip
Part number:706-524

£0.64

20 - Tension Nut Bushing Screw
20 - Tension Nut Bushing Screw
Part number:721-110

£10.92

21  -Tension Retaining Ring
21 -Tension Retaining Ring
Part number:721-111

£1.25

22 - Sliding Sleeve
22 - Sliding Sleeve
Part number:708-246

£6.69

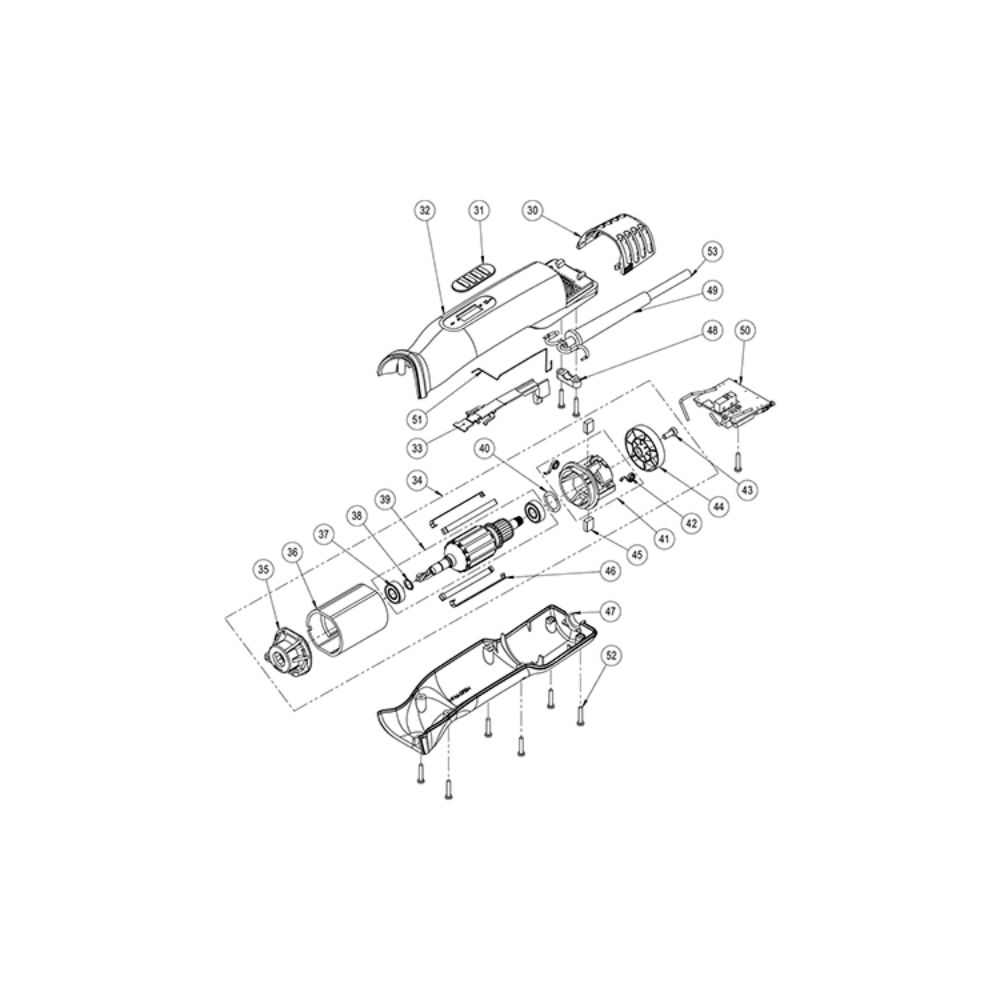

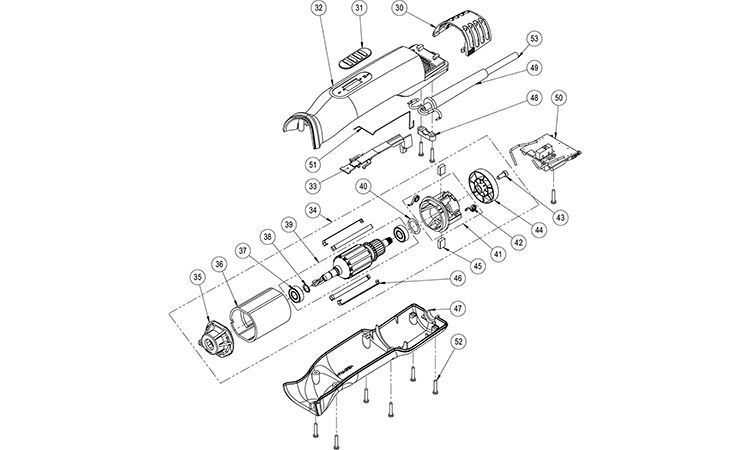

Heiniger Xpert Body
31 - Switch Lever
31 - Switch Lever
Part number:708-061

£1.43

32 - Motor Upper Housing
32 - Motor Upper Housing
Part number:708-030

£34.61

32B - Motor Upper Housing X-Series2

£46.10

33 - Catch Spring for Switch
33 - Catch Spring for Switch
Part number:708-060

£2.66

33b - Catch Spring for Switch X-Series2 with Magnet

£4.54

34 - Motor X-Series2 240V Complete

£149.12

34C - Motor X-Series2 240V Complete

£156.94

35 - Bearing Flange Front
35 - Bearing Flange Front
Part number:708-110

£2.66

36 - Stator
36 - Stator
Part number:708-138

£42.70

37 - Body Bearing
37 - Body Bearing
Part number:708-120

£7.89

38 - Circlip
38 - Circlip
Part number:708-122

£0.85

39 - Rotor
39 - Rotor
This item has been replaced by the 2 speed model, part number 708-130.
Part number:708-132
This product has now been discontinued

£87.56

40 - Rotor X-Series2 240V incl. ball bearing
40 - Rotor X-Series2 240V incl. ball bearing
It is recommended to replace the motor and PCB together
Part number:708-130

£89.99

40 - Spring Washer
40 - Spring Washer
Part number:701-637

£1.59

41A - Bearing flange back with carbon brush springs
41A - Bearing flange back with carbon brush springs
This item has been replaced by the 2 speed model, part number 708-116
Part number:708-111
This product has now been discontinued

£10.34

41B - Bearing flange back X-Series2 with carbon brush springs

£10.34

42 - Carbon Brush Spring
42 - Carbon Brush Spring
Part number:708-124

£2.80

43 - PH Screw M4 x 10
43 - PH Screw M4 x 10
Part number:706-523

£1.28

44 - Fan Wheel X-Series
44 - Fan Wheel X-Series
Part number:708-123

£2.76

45 - Carbon Brush (Pair)
45 - Carbon Brush (Pair)
Part number:708-118

£3.87

46 - Motor Retaining Clamp
46 - Motor Retaining Clamp
Part number:708-115

£1.28

47 - Lower Motor Housing
47 - Lower Motor Housing
Part number:708-050

£13.80

48 - Cable Grip
48 - Cable Grip
Part number:707-082

£1.64

49 - Anti Kink Sleeve
49 - Anti Kink Sleeve
Part number:707-080

£4.04

50 - PCB
50 - PCB
It is recommended to replace the motor and PCB together
Part number:708-082

£59.00

51 - Contact Wire
51 - Contact Wire
Part number:708-125

£1.75

52 - PT Screw Kombitorx KA 30x16
52 - PT Screw Kombitorx KA 30x16
Part number:707-557

£0.80

53A - Cable with EU Plug

£19.84

53B - Cable with UK Plug
53B - Cable with UK Plug
Part number:707-059

£20.47
