Lister Nova 12V Spares

Shearing Equipment|Spares|Machine Spares|Lister Nova 12V Spares
Occasionally spare parts may need to be ordered from our suppliers. We will notify you when your order is processed if any delay will be greater than 3 working days.
Lister Nova 12V Spares

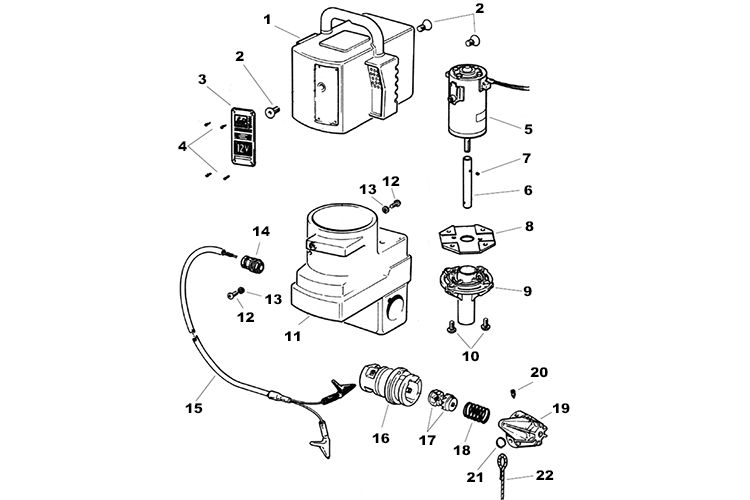

Click on the image to enlarge
1 - Top casing Assembly
1 - Top casing Assembly
Part number:289-18070

POA

2 - Screw M8 x 12mm
2 - Screw M8 x 12mm
Part number:289-17130

£1.16

3 - Specification Plate
3 - Specification Plate
Part number:289-18060

POA

4 - Screw M3 x 6
4 - Screw M3 x 6
Part number:289-17190

£0.24

5 - Motor 12V Assembly
5 - Motor 12V Assembly
Part number:289-18010

£222.03

6 - Extension Shaft
6 - Extension Shaft
Part number:289-18020

POA

7 - Pin
7 - Pin
Part number:289-18120

POA

8 - Adaptor Plate
8 - Adaptor Plate
Part number:289-18040

£22.63

9 - Screw M5 x 10mm
9 - Screw M5 x 10mm
Part number:289-16040

£0.90

10 - Sheath Coupling
10 - Sheath Coupling
Part number:289-17060

£7.22

11 - Screw M6 x 12mm
11 - Screw M6 x 12mm
Part number:289-17090

£0.75

12 - Bottom Casing
12 - Bottom Casing
Part number:289-17070

£36.77

13 - Washer
13 - Washer
Part number:289-17540

£0.60

14 - Cable Clamp
14 - Cable Clamp
Part number:289-18050

£2.76

15 - Battery lead
15 - Battery lead
Part number:258-33150

£27.05

16 - Switch Assembly
16 - Switch Assembly
Part number:289-14581

£25.30

17 - Ratchet Wheel
17 - Ratchet Wheel
Price is for one ratchet wheel.
Part number:289-15020

£2.55

18 - Ratchet Spring
18 - Ratchet Spring
Part number:289-15040

£1.25

19 - Switch Lever for Lister Nova 12V

£47.76

20 - Grubscrew M5 x 10mm
20 - Grubscrew M5 x 10mm
Part number:289-15130

£0.66

21 - Split Ring
21 - Split Ring
Part number:289-17230

£0.56

22 - Pull Rope
22 - Pull Rope
Part number:289-10010

£8.00
